Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

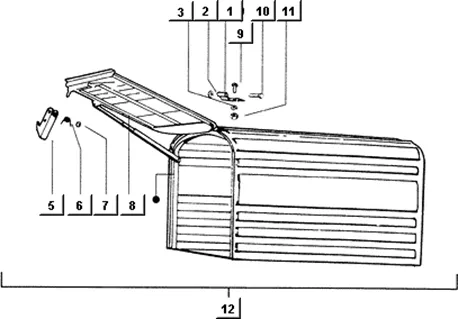

Châssis : T47 FOURGON COMPLET
Fourgon complet
Search
1186425 - CHARNIERE

1
P2R reference P2R reference 115668
Maker reference Maker reference 1186425

1186425 CHARNIERE

More information

Quantity required : 1

WASHER PLATE (4. 5X10X1) OEM PIAGGIO COMMON A LA RANGE-013769

2
P2R reference P2R reference 65361
Maker reference Maker reference 0137695

WASHER PLATE (4. 5X10X1) OEM PIAGGIO COMMON A LA RANGE-013769

More information

Quantity required : 2

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

3
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

More information

Quantity required : 6

118658 - CROCHET

5
P2R reference P2R reference 116395
Maker reference Maker reference 118658

118658 - CROCHET

More information

Quantity required : 2

118655 - RESSORT

6
P2R reference P2R reference 111339
Maker reference Maker reference 118655

118655 - RESSORT

More information

Quantity required : 2

CLIPS/CIRCLIPS DIAMETRE 5MM OEM PIAGGIO COMMON A LA RANGE-005965

7
P2R reference P2R reference 63797
Maker reference Maker reference 0059655

CLIPS/CIRCLIPS DIAMETRE 5MM OEM PIAGGIO COMMON A LA RANGE-005965

More information

Quantity required : 2

2469815 - ABATTANT

8
P2R reference P2R reference 122624
Maker reference Maker reference 2469815

2469815 LID

More information

Quantity required : 1

000702 - VIS S00070200

9
P2R reference P2R reference 63750
Maker reference Maker reference 0007025

000702-SCREW S00070200

More information

Quantity required : 6

118651 - PIVOT

10
P2R reference P2R reference 111114
Maker reference Maker reference 118651

118651 - PIVOT

More information

Quantity required : 2

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

11
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 6

2469845 - FOURGON TRI 50

12
P2R reference P2R reference 124244
Maker reference Maker reference 2469845

2469845 FOURGON TRI 50

More information

Quantity required : 1
