Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

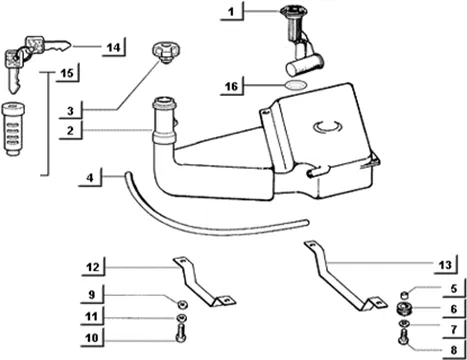

Châssis : T43 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T43.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/1/6/6/img/119166.jpg)
1 |
JAUGE A FUEL OEM PIAGGIO THREE-WHEELER APE 1998 > 2018-291530 More informationQuantity required : 1 |
||||||
2 |
567073 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
568254 - RESERVOIR More informationQuantity required : 1 |
||||||
|
3 |
567076 CAP ESS A CLE More informationQuantity required : 1 |
||||||
|
3 |
568365 CAP TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/4/8/img/113248.jpg)
4 |
FUEL HOSE OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-CM031701 More informationQuantity required : 1 |
||||||
|
5 |
256416 SPACER More informationQuantity required : 2 |
||||||
|
6 |
256415 SILENBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
7 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
8 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 2 |
||||||
|
9 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
|
10 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 2 |
||||||
|
11 |
016673-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/8/4/img/113284.jpg)
12 |
BRACKET OF FITTING KIT DE TANK OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-255800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/1/1/9/img/114119.jpg)
13 |
BRACKET OF FITTING KIT DE TANK OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-255799 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/4/img/66024.jpg)
14 |
EBAUCHE DE CLE OEM PIAGGIO 50 NRG, TYPHOON, ZIP 1998 > 2005-257710 More informationQuantity required : 1 |
||||||
|
15 |
567078 GR SERRURES CYLINDER C80 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/8/5/4/img/119854.jpg)
15 |
KIT LOCK OEM PIAGGIO THREE-WHEELER APE 50 2T 1998 >-1E004504 More informationQuantity required : 1 |
||||||
|
16 |
258161 - JOINT More informationQuantity required : 1 |
