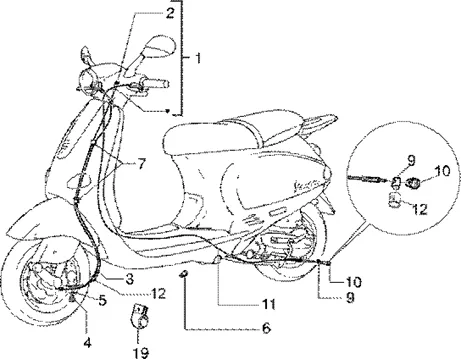

Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005 VESPA

Transmisisons : T36 TRANSMISSION
Transmission
Search
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50 ET2 1998 > 2004, 125 ET4 1998 > 2004-56116R

1
P2R reference P2R reference 79772
Maker reference Maker reference 56116R

CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50 ET2 1998 > 2004, 125 ET4 1998 > 2004-56116R

More information

Quantity required : 1

TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4, 125-250 HEXAGON -561806-

2
P2R reference P2R reference 79804
Maker reference Maker reference 561806

TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4, 125-250 HEXAGON -561806-

More information

Quantity required : 1

563886 - CANALISATION

3
P2R reference P2R reference 79979
Maker reference Maker reference 563886

563886-CANALISATION

More information

Quantity required : 1

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

4
P2R reference P2R reference 66050
Maker reference Maker reference 265451

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

More information

Quantity required : 1

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

5
P2R reference P2R reference 65723
Maker reference Maker reference 127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

More information

Quantity required : 2

268172 - ATTACHE

6
P2R reference P2R reference 77195
Maker reference Maker reference 268172

268172-ATTACHE

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

7
P2R reference P2R reference 66017
Maker reference Maker reference 257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

More information

Quantity required : 2

BUSH/EMBOUT DE CABLE OF BRAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-266040

8
P2R reference P2R reference 66051
Maker reference Maker reference 266040

BUSH/EMBOUT DE CABLE OF BRAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-266040

More information

Quantity required : 1

PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640

9
P2R reference P2R reference 65794
Maker reference Maker reference 179640

PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640

More information

Quantity required : 1

NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310

10
P2R reference P2R reference 66088
Maker reference Maker reference 270310

NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310

More information

Quantity required : 1

CABLE/CONTROL/TRANSMISSION OF BRAKE REAR OEM PIAGGIO 50-125 VESPA LX, VESPA-S, NRG POWER DT-564217

11
P2R reference P2R reference 80030
Maker reference Maker reference 564217

CABLE/CONTROL/TRANSMISSION OF BRAKE REAR OEM PIAGGIO 50-125 VESPA LX, VESPA-S, NRG POWER DT-564217

More information

Quantity required : 1

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-560136

12
P2R reference P2R reference 66992
Maker reference Maker reference 560136

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-560136

More information

Quantity required : 1

563872 - PATTES

19
P2R reference P2R reference 79976
Maker reference Maker reference 563872

563872 - PATTES

More information

Quantity required : 1
