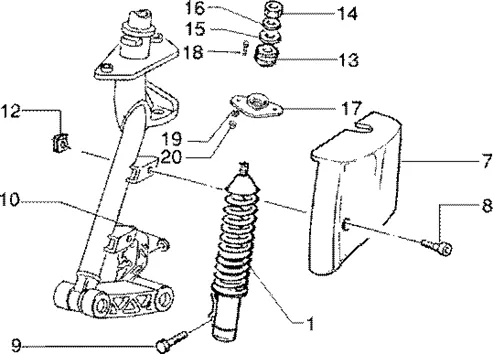

Suspensions-roues : T31 COUVERTURE AMORTISSEUR AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/5/6/img/82456.jpg)
1 |
SHOCK ABSORBER FRONT OEM PIAGGIO 50 ZIP SP 2000 >, VESPA 50-125 ET2 1998 > 2005-598922 More informationQuantity required : 1 |
||||||
7 |
82170000AA - CACHE AMORTISS AV ET2/4 More informationQuantity required : 1 |
||||||
|
7 |
8217005-COVER FORK UNPAINTED More informationQuantity required : 1 |
||||||
|
7 |
CACHE AMORTISS AV |
||||||
|
7 |
82170000V9 - CACHE AMORTISS AV More informationQuantity required : 1 |
||||||
|
7 |
8217005060 - CACHE FOURCHE 336 More informationQuantity required : 1 |
||||||
|
7 |
8217005087 - PLAS. ENG. INSP. DOOR ATT.MAINBODYFAIRIN More informationQuantity required : 1 |
||||||
|
7 |
8217005090 - CACHE AMORTISS AV ET2/4 94 NOIR More informationQuantity required : 1 |
||||||
|
7 |
8217005095-COVER AMORTISS AV ET2/4 729 GREY More informationQuantity required : 1 |
||||||
|
7 |
82170050A7-COVER FORK More informationQuantity required : 1 |
||||||
|
7 |
82170050C1 - COP.SOSP.** More informationQuantity required : 1 |
||||||
|
7 |
82170050D1 - CACHE FOURCHE 251 More informationQuantity required : 1 |
||||||
|
7 |
COUV. AMOR. AV. |
||||||
|
7 |
82170050R7 - CACHE FOURCHE More informationQuantity required : 1 |
||||||
|
7 |
82170050V3 - COUV. AMOR. AV. More informationQuantity required : 1 |
||||||
|
7 |
CACHE FOURCHE |
||||||
|
7 |
|
||||||
|
7 |
|
||||||
|
7 |
|
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
9 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
10 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/4/3/0/img/76430.jpg)
13 |
BUFFER REAR SHOCK ABSORBER OEM PIAGGIO 50 ZIP, ET2, 125 ET4/GILERA 50 STALKER, 125 RUNNER-216209 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/9/6/4/img/73964.jpg)
14 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-021210 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/7/img/74967.jpg)
15 |
WASHER PLATE (10. 5X35X2) OEM PIAGGIO COMMON A LA RANGE-174088 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
16 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/4/0/img/79840.jpg)
17 |
BRACKET OF FITTING KIT SHOCK ABSORBER FRONT OEM PIAGGIO 50-125 ET4-562305 More informationQuantity required : 1 |
||||||
|
18 |
ARAND.PLANA MECANIZ. D12 DIN125 ZnB |
||||||
|
19 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
20 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 2 |
