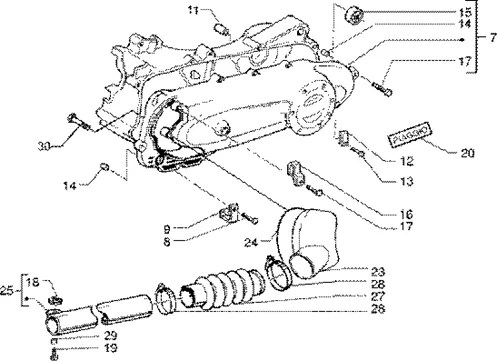

Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005 VESPA

Moteur : T12 COUVERCLE D'EMBRAYAGE
Couvercle d'embrayage
Search
CASING DE TRANSMISSION OEM PIAGGIO 50 ZIP 4T 2006 > 2013-969211

7
P2R reference P2R reference 94044
Maker reference Maker reference 969211

CASING DE TRANSMISSION OEM PIAGGIO 50 ZIP 4T 2006 > 2013-969211

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

8
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 11

9
P2R reference P2R reference
Maker reference Maker reference 5647215

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

10
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

11
P2R reference P2R reference 66167
Maker reference Maker reference 286209

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

More information

Quantity required : 1

PLATE DE MAINTIEN DU CABLE OF BRAKE ON CASING ENGINE OEM PIAGGIO FLY, LIBERTY, TYPHOON, NRG, ZIP, VESPA LX, SPRINT, S-564497

12
P2R reference P2R reference 67059
Maker reference Maker reference 564497

PLATE DE MAINTIEN DU CABLE OF BRAKE ON CASING ENGINE OEM PIAGGIO FLY, LIBERTY, TYPHOON, NRG, ZIP, VESPA LX, SPRINT, S-564497

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

13
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

13
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

14
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

15
P2R reference P2R reference 68524
Maker reference Maker reference 82521R

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

More information

Quantity required : 1

564629-CLAMP

16
P2R reference P2R reference 67068
Maker reference Maker reference 564629

564629-CLAMP

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

17
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

18
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958

19
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958

More information

Quantity required : 1

MONOGRAMME CARTER

20
P2R reference P2R reference
Maker reference Maker reference 483510

MONOGRAMME CARTER

COVER DE COOLING CASING DE TRANSMISSION OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-9698046

23
P2R reference P2R reference 70994
Maker reference Maker reference 969804

COVER DE COOLING CASING DE TRANSMISSION OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-9698046

More information

Quantity required : 1

GASKET OF PROTECTOR DE CASING TRANSMISSION OEM PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT-435251

24
P2R reference P2R reference 66470
Maker reference Maker reference 435251

GASKET OF PROTECTOR DE CASING TRANSMISSION OEM PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT-435251

More information

Quantity required : 1

COOLING PIPE ON TRANSMISSION HOUSING "PIAGGIO GENUINE PARTS" VESPA 50-125 LX, 125 VESPA-S, ET4 -576267-

25
P2R reference P2R reference 80810
Maker reference Maker reference 576267

HOSE DE REFROISISSEMENT COVER DE TRANSMISSION OEM PIAGGIO VESPA 50-125 LX, 125 VESPA-S, ET4-576267

More information

Quantity required : 1

SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-298548

27
P2R reference P2R reference 66303
Maker reference Maker reference 298548

SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-298548

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

28
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 2

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

29
P2R reference P2R reference 65832
Maker reference Maker reference 199190

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

More information

Quantity required : 2

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

30
P2R reference P2R reference 66471
Maker reference Maker reference 435295

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

More information

Quantity required : 3
