Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

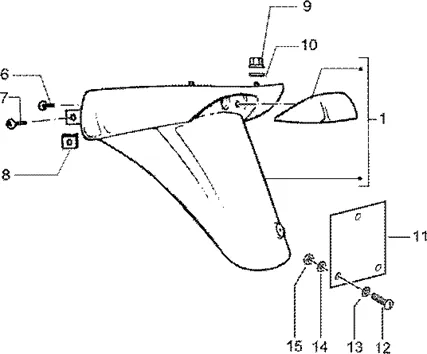

Châssis : T38 PROTECTION AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T38.PNG)
1 |
294218000D - PROTECT AR GRIS M99 More informationQuantity required : 1 |
||||||
|
1 |
2942180090 - BAVETTE AR 94 More informationQuantity required : 1 |
||||||
|
1 |
BAVETTE AR |
||||||
|
1 |
29421800G5 - PROTECTION More informationQuantity required : 1 |
||||||
|
1 |
BAVETTE AR |
||||||
|
1 |
29421800V3 - PROTECTION More informationQuantity required : 1 |
||||||
|
1 |
BAVETTE AR |
||||||
|
1 |
29421800V9 - BAVETTE AR More informationQuantity required : 1 |
||||||
|
1 |
29421800VA-MUD FLAP AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/4/img/66264.jpg)
2 |
CAP COVER OEM PIAGGIO COMMON A LA RANGE-293717 More informationQuantity required : 3 |
||||||
|
6 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
7 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
8 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
9 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
10 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/8/img/67968.jpg)
11 |
BRACKET DE PLATE IMMATRICCULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-642235 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
11 |
DOOR PLATE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584884 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
12 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
13 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
14 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
15 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 3 |
