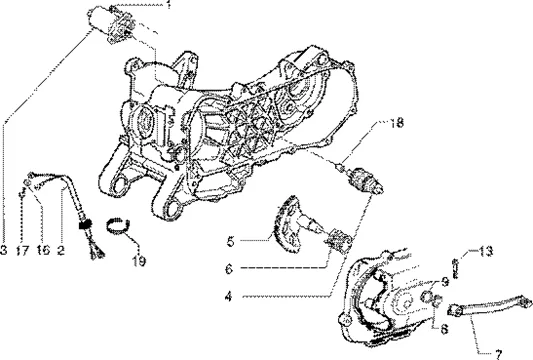

Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005 VESPA

Moteur : T10 DEMARREUR ELECTRIQUE-LEVIER DE DEMARRAGE
Demarreur electrique-levier de demarrage
Search
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

1
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

More information

Quantity required : 2

969347 - GROUPE CABLES

2
P2R reference P2R reference 70968
Maker reference Maker reference 969347

969347-GROUP CABLES

More information

Quantity required : 1

STARTER MOTOR SCOOT OEM PIAGGIO 50 FLY 4T 2005 >, LIBERTY 4T2005 >, NRG PURE-JET, ZIP 4T 2000 >/GILERA 50 RUNNER PURE-JET/VESPA LX 4T2005 >, PRIMAVERA 4T2013 >, VESPA S 4T 2008 >-96921R

3
P2R reference P2R reference 70939
Maker reference Maker reference 96921R

STARTER MOTOR SCOOT OEM PIAGGIO 50 FLY 4T 2005 >, LIBERTY 4T2005 >, NRG PURE-JET, ZIP 4T 2000 >/GILERA 50 RUNNER PURE-JET/VESPA LX 4T2005 >, PRIMAVERA 4T2013 >, VESPA S 4T 2008 >-96921R

More information

Quantity required : 1

LANCEUR/RENVOI DE STARTER MOTOR SCOOT OEM PIAGGIO 50 4T FLY 2005 >, LIBERTY 2005 >, VESPA LX 2005 >, PRIMAVERA 2013 >, VESPA SPRINT 2014 >, NRG PURE-JET 2005 >, ZIP 2000 >/APRILIA 50 RS 2006 >-289202

4
P2R reference P2R reference 66215
Maker reference Maker reference 289202

LANCEUR/RENVOI DE STARTER MOTOR SCOOT OEM PIAGGIO 50 4T FLY 2005 >, LIBERTY 2005 >, VESPA LX 2005 >, PRIMAVERA 2013 >, VESPA SPRINT 2014 >, NRG PURE-JET 2005 >, ZIP 2000 >/APRILIA 50 RS 2006 >-289202

More information

Quantity required : 1

SPINDLE KICK OEM PIAGGIO 50 FLY 2T ET 4T, LYBERTY 2T ET 4T, NRG, TYPHOON, VESPA LX 2T ET 4T/GILERA 50 DNA, STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-831458

5
P2R reference P2R reference 68967
Maker reference Maker reference 831458

SPINDLE KICK OEM PIAGGIO 50 FLY 2T ET 4T, LYBERTY 2T ET 4T, NRG, TYPHOON, VESPA LX 2T ET 4T/GILERA 50 DNA, STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-831458

More information

Quantity required : 1

SPRING RAPPEL DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289495

6
P2R reference P2R reference 66223
Maker reference Maker reference 289495

SPRING RAPPEL DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289495

More information

Quantity required : 1

KICK STARTER "PIAGGIO GENUINE PART" 50 VESPA LX 4 stroke, VESPA-S 4 stroke, PRIMAVERA 4 stroke, SPRINT 4 stroke -969421

7
P2R reference P2R reference 70977
Maker reference Maker reference 969421

KICK STARTER "PIAGGIO GENUINE PART" 50 VESPA LX 4 STROKE, VESPA-S 4 STROKE, PRIMAVERA 4 STROKE, SPRINT 4 STROKE -969421

More information

Quantity required : 1

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

8
P2R reference P2R reference 63814
Maker reference Maker reference 0064165

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

More information

Quantity required : 1

WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987

9
P2R reference P2R reference 66443
Maker reference Maker reference 433987

WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

13
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

13
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

16
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

More information

Quantity required : 1

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644

17
P2R reference P2R reference 65449
Maker reference Maker reference 0186445

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644

More information

Quantity required : 1

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

18
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

19
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 1
