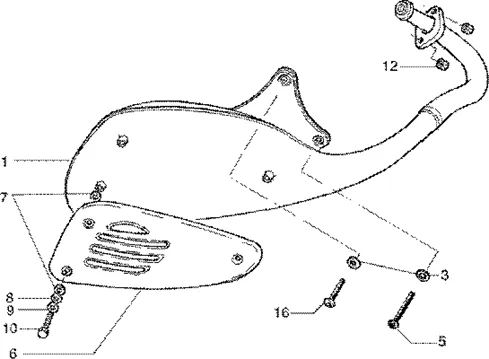

Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005 VESPA

Châssis : T19 SILENCIEUX
Silencieux
Search
969403 - SILENCIEUX

1
P2R reference P2R reference 94046
Maker reference Maker reference 969403

969403 - SILENCIEUX

More information

Quantity required : 1

1A0048945 - SILENCIEUX COMPLET

1
P2R reference P2R reference 139577
Maker reference Maker reference 1A0048945

SILENCER COMPLETE PIAGGIO 50 LIBERTY, VESPA LX, VESPA-S, VESPA SPRINT, PRIMAVERA-1A0048945

More information

Quantity required : 1

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

3
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

More information

Quantity required : 2

297582 - VIS

5
P2R reference P2R reference 154069
Maker reference Maker reference 297582

297582 - VIS

More information

Quantity required : 1

PROTECTOR/SHEET METAL DE SILENCER OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 125 VESPA GTS-8454655

6
P2R reference P2R reference 93017
Maker reference Maker reference 8454655

PROTECTOR/SHEET METAL DE SILENCER OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 125 VESPA GTS-8454655

More information

Quantity required : 1

SPACER RUBBER (7X13X2) OEM PIAGGIO COMMON A LA RANGE-479882

7
P2R reference P2R reference 66586
Maker reference Maker reference 479882

SPACER RUBBER (7X13X2) OEM PIAGGIO COMMON A LA RANGE-479882

More information

Quantity required : 6

WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733

8
P2R reference P2R reference 65682
Maker reference Maker reference 0977335

WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733

More information

Quantity required : 3

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

9
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

More information

Quantity required : 3

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264

10
P2R reference P2R reference 66376
Maker reference Maker reference 430264

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264

More information

Quantity required : 3

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800

10
P2R reference P2R reference 66440
Maker reference Maker reference 433800

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800

More information

Quantity required : 1

NUT D'ECHAPPEMENT COTE CYLINDER OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-833494

12
P2R reference P2R reference 69067
Maker reference Maker reference 833494

NUT D'ECHAPPEMENT COTE CYLINDER OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-833494

More information

Quantity required : 2

SCREW BTR (8X67) OEM PIAGGIO COMMON A LA RANGE-478761

16
P2R reference P2R reference 66568
Maker reference Maker reference 478761

SCREW BTR (8X67) OEM PIAGGIO COMMON A LA RANGE-478761

More information

Quantity required : 1
