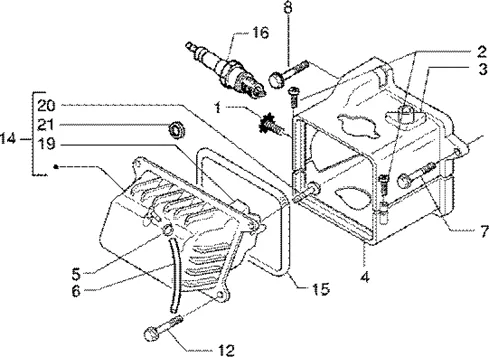

Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005 VESPA

Moteur : T7 COUVERCLE CULASSE
Couvercle culasse
Search
SCREW COVER ORIGNE PIAGGIO COMMON A LA RANGE-969339

1
P2R reference P2R reference 70966
Maker reference Maker reference 969339

SCREW COVER ORIGNE PIAGGIO COMMON A LA RANGE-969339

More information

Quantity required : 1

SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577

2
P2R reference P2R reference 66038
Maker reference Maker reference 259577

SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577

More information

Quantity required : 1

828553 - COIFFE CYLINDRE

3
P2R reference P2R reference 68763
Maker reference Maker reference 828553

828553 - COIFFE CYLINDRE

More information

Quantity required : 1

833471 - COIFFE CYLINDRE

3
P2R reference P2R reference 69064
Maker reference Maker reference 833471

COVER DE COOLING OEM PIAGGIO 50 ZIP 4T E2 2006 > 2013-833471

More information

Quantity required : 1

COVER DE COOLING OEM PIAGGIO 50 ZIP 4T E2 2006 > 2013-969918

4
P2R reference P2R reference 71000
Maker reference Maker reference 969918

COVER DE COOLING OEM PIAGGIO 50 ZIP 4T E2 2006 > 2013-969918

More information

Quantity required : 1

HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908

5
P2R reference P2R reference 72894
Maker reference Maker reference CM002908

HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908

More information

Quantity required : 3

969415-TUBE

6
P2R reference P2R reference 70976
Maker reference Maker reference 969415

969415-TUBE

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

7
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

More information

Quantity required : 1

SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662

8
P2R reference P2R reference 68770
Maker reference Maker reference 828662

SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662

More information

Quantity required : 1

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

12
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

More information

Quantity required : 1

832964 - TAPA

14
P2R reference P2R reference 69029
Maker reference Maker reference 832964

832964-TAPA

More information

Quantity required : 1

843684 - JOINT

15
P2R reference P2R reference 69297
Maker reference Maker reference 843684

843684 - JOINT

More information

Quantity required : 1

SPARK PLUG CHAMPION RG4HC OEM PIAGGIO COMMON A TOUTE LA RANGE-438027

16
P2R reference P2R reference 66515
Maker reference Maker reference 438027

SPARK PLUG CHAMPION RG4HC OEM PIAGGIO COMMON A TOUTE LA RANGE-438027

More information

Quantity required : 1

SPARK PLUG CR8EB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-638853

16
P2R reference P2R reference 67814
Maker reference Maker reference 638853

SPARK PLUG CR8EB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-638853

More information

Quantity required : 1

969286 - PIASTRA

19
P2R reference P2R reference 70957
Maker reference Maker reference 969286

969286-PLATE

More information

Quantity required : 1

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264

20
P2R reference P2R reference 66376
Maker reference Maker reference 430264

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264

More information

Quantity required : 4

969894 - JOINT

21
P2R reference P2R reference 70997
Maker reference Maker reference 969894

969894-GASKET

More information

Quantity required : 1
