Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

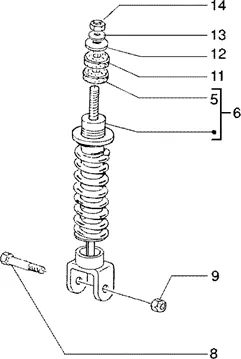

Suspensions-roues : T32 AMORTISSEUR AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/1/img/65781.jpg)
5 |
BUFFER ARM OCSILLANT OEM PIAGGIO COMMON A TOUTE LA RANGE-178149 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/0/2/img/90302.jpg)
6 |
REAR SHOCK ABSORBER OEM PIAGGIO 50 VESPA LX 2005 >, ET2, SFERA RST 1998 > 2005/GILERA 50 RUNNER 1998 > 2005-667967 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
8 |
SCREW FLANGE TH (10X55) MOUNTING REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
9 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/2/img/65782.jpg)
11 |
BUFFER UPPER REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA SCOOTER 50 CC ET MAXI SCOOTER 125-250 CC-178150 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/7/img/66057.jpg)
12 |
WASHER PLATE (8X37X1, 5) OEM PIAGGIO COMMON A LA RANGE-267038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
13 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/8/img/65598.jpg)
14 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-021108 More informationQuantity required : 1 |
