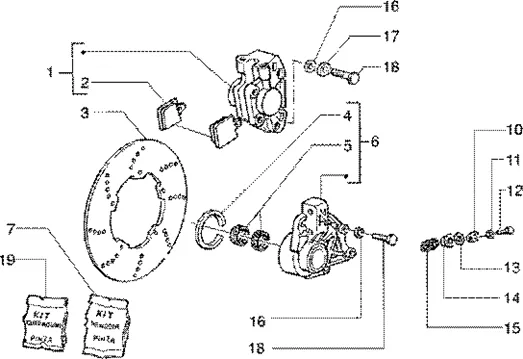

Suspensions-roues : T30 ETRIER FREIN A DISQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/4/img/72974.jpg)
1 |
BRAKE CALIPER OEM PIAGGIO 50-125 VESPA LX, VESPA S, LIBERTY, 50 ZIP/GILERA 50 DNA-CM065704 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/0/img/68010.jpg)
2 |
BRAKE PAD OEM PIAGGIO 50-125 ZIP AV, 50-125 LIBERTY AV, 50-125 VESPA ET4 AV (HENG-TONG)/GILERA 50 DNA AR, RUNNER AR, NRG AR (HENG-TONG) (PAIRE)-647170 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/2/2/img/68422.jpg)
2 |
BRAKE PAD OEM PIAGGIO 125-250-400 MP3 2006 > AV, 50-125 VESPA LX AV, 50-125 VESPA S AV, 50-125 LIBERTY AV, 50 NRG/GILERA 50 RUNNER AR, 500 FUOCO AR (PAIRE)-666574 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/0/img/67040_20260413172022.jpg)
3 |
BRAKE DISC SCOOT OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA S 2007 >, PRIMAVERA 2013 >, FLY 2005 >, 50 ZIP SP 2006 >, 125 VESPA PX 2001 > FRONT-56395R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/5/img/75025.jpg)
4 |
BUSH/GASKET (46X56X4) HUB FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-177494 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/2/img/75022.jpg)
5 |
ROLLER BEARING FOR DRAWN CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -177436 More informationQuantity required : 2 |
|||||||||
6 |
HUB FRONT WHEEL/BRACKET PINCE BRAKE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, VESPA LXV, ET2, ET4-5602865 More informationQuantity required : 1 |
|||||||||
|
7 |
498849-KIT REVISION CALIPER More informationQuantity required : 1 |
|||||||||
|
10 |
269118 - PATTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
11 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
11 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/4/img/65634.jpg)
12 |
SCREW TH (5X16) OEM PIAGGIO COMMON A LA RANGE-031058 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/4/4/img/77144.jpg)
13 |
RUBBER MOUNT/BUFFER DE FORK OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/1/2/6/img/140126.jpg)
14 |
BRACKET DE SPROCKET DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 125 VESPA PX, 125-250 VESPA GTS-1C001369 More informationQuantity required : 1 |
|||||||||
|
14 |
BRACKET DE SPROCKET DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 125 VESPA PX, 125-250 VESPA GTS-1C001369 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/8/2/img/77182.jpg)
15 |
SPROCKET ENTRAINEUR DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 VESPA LX, 125-250-300 GTS-267819 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
16 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
17 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
18 |
SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150 More informationQuantity required : 2 |
|||||||||
|
19 |
498850 - KIT REVISION ETRIER More informationQuantity required : 1 |
|||||||||
