Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

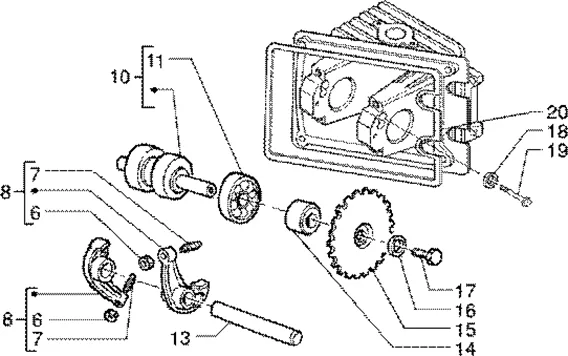

Moteur : T6 BALANCIER-ARBRE À CAMES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T6.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/7/img/66667.jpg)
6 |
NUT DE CULBUTEUR (M6X0. 75) OEM PIAGGIO COMMON A LA RANGE-484819 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/1/img/68731.jpg)
7 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R More informationQuantity required : 2 |
||||||
8 |
CULBUTEUR OEM PIAGGIO 50 FLY 4T, ZIP 4T, VESPA LX 4T, LIBERTY 4T, PRIMAVERA 4T-9692695 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/9/img/70949.jpg)
10 |
CAMSHAFT OEM PIAGGIO 50 FLY 4T, ZIP 4T, VESPA LX 4T, LIBERTY 4T, PRIMAVERA 4T 2013 <-9692476 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/5/img/70955.jpg)
11 |
BEARING (12X32X10) OEM PIAGGIO COMMON A LA RANGE-96926R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/3/img/70953.jpg)
13 |
SHAFT OF CULBUTEUR OEM PIAGGIO 50 FLY 4T, ZIP 4T, VESPA LX 4T, LIBERTY 4T, PRIMAVERA 4T-969268 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/1/img/70951.jpg)
14 |
SPACER DE BALANCIER OEM PIAGGIO COMMON A LA RANGE-969265 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/4/img/66464.jpg)
15 |
COURONNE TIMING COTE CAMSHAFT OEM PIAGGIO 50 FLY 4T, ZIP 4T, VESPA LX 4T, LIBERTY 4T, PRIMAVERA 4T-434943 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/9/7/img/174697.jpg)
15 |
SPROCKET TIMING OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-9697476 More informationQuantity required : 1 |
||||||
|
15 |
SPROCKET TIMING OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-9697476 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
16 |
WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
17 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
||||||
|
18 |
969315-MUELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
19 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/5/img/70965.jpg)
20 |
GASKET COVER ENGINE OEM PIAGGIO 50 4T ZIP, FLY, LIBERTY 2015 <-969334 More informationQuantity required : 1 |
