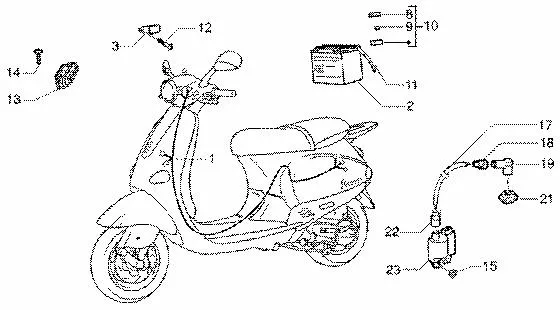

Connexions électriques : T41 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T41.PNG)
1 |
584539-WIRING HARNESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
2 |
BATTERY 12V 9AH YB9-B OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY-584810 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
3 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/1/img/66241.jpg)
8 |
COVER BOX A FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
9 |
BLADE FUSE STANDARD 10A OEM PIAGGIO COMMON A TOUTE LA RANGE-292507 More informationQuantity required : 1 |
||||||
|
10 |
PORTE FUSIBLES |
||||||
|
11 |
580075-HOSE RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
12 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/2/img/70972.jpg)
13 |
REGULATEUR OEM PIAGGIO 50 FLY 4T 2006, LIBERTY 4T 2006 >, VESPA LX 4T 2006 >, VESPA PRIMAVERA 4T 25KM/H, VESPA-S 4T 25 KM/H, SPRINT 4T 25 KM/H/APRILIA 50-100 SCARABEO 4T 2002 >-9693825 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.jpg)
15 |
241937 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
17 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/2/img/68522.jpg)
18 |
ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/9/img/70969.jpg)
19 |
ANTIPARASITE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-969348 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/0/img/68750.jpg)
21 |
GUIDE CABLE HT OEM PIAGGIO COMMON A LA RANGE-828339 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
22 |
CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/6/4/img/67864.jpg)
23 |
BOBINE IGNITION OEM PIAGGIO 50 FLY 4T 2005 >, LIBERTY 4T 2005 >, VESPA LX 4T 2005 >, VESPA ET4 1998 > 2005/APRILIA 50 SCARABEO 4T 2002 >-6399786 More informationQuantity required : 1 |
