Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

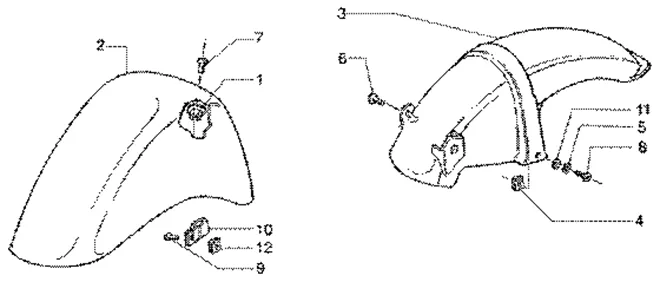

Châssis : T27 GARDE BOUE AV ET AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
1 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 3 |
|||||||||
2 |
82490000AA - GARDE BOUE More informationQuantity required : 1 |
|||||||||
|
2 |
82490000F2 - GARDE BOUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/6/5/4/img/92654.jpg)
2 |
FRONT MUDGUARD UNPAINTED OEM PIAGGIO VINTAGE ET2, ET4-8249005 More informationQuantity required : 1 |
|||||||||
|
2 |
82490000V9 - GARDE BOUE AVT More informationQuantity required : 1 |
|||||||||
|
2 |
82490000VA - GARDE BOUE More informationQuantity required : 1 |
|||||||||
|
2 |
8249005060 - GARDE BOUE 336 More informationQuantity required : 1 |
|||||||||
|
2 |
8249005066 - GARDE BOUE 913 More informationQuantity required : 1 |
|||||||||
|
2 |
8249005087 - GARDE BOUE 724 More informationQuantity required : 1 |
|||||||||
|
2 |
8249005090 - GARDE BOUE More informationQuantity required : 1 |
|||||||||
|
2 |
8249005095 - GARDE BOUE AVT 729 More informationQuantity required : 1 |
|||||||||
|
2 |
82490050A7 - GARDE-BOUE AVANT ET-2/4 686 GRIS More informationQuantity required : 1 |
|||||||||
|
2 |
82490050B2 - GARDE BOUE 693 More informationQuantity required : 1 |
|||||||||
|
2 |
82490050D1 - GARDE BOUE AV BLE251 More informationQuantity required : 1 |
|||||||||
|
2 |
GARD.BOUE AV. |
|||||||||
|
2 |
82490050R7 - GARDE-BOUE More informationQuantity required : 1 |
|||||||||
|
2 |
|
|||||||||
|
2 |
|
|||||||||
|
2 |
82490050V6-GUARD-MUD More informationQuantity required : 1 |
|||||||||
|
2 |
|
|||||||||
|
2 |
8249185 - GARDE BOUE 208 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/7/2/5/img/199725.jpg)
3 |
REAR MUDGUARD OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 50 ZIP 2006 > 2016, NRG, LIBERTY/GILERA 50 STALKER-5A001285 More informationQuantity required : 1 |
|||||||||
|
3 |
REAR MUDGUARD OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 50 ZIP 2006 > 2016, NRG, LIBERTY/GILERA 50 STALKER-5A001285 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
5 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
|||||||||
|
7 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
|||||||||
|
8 |
277330-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/2/img/65402.jpg)
9 |
SCREW AUTOFOREUSE (4, 2X9, 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015900 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/7/8/img/79878.jpg)
10 |
CLAMP GUIDE CABLE OEM PIAGGIO 50-125 VESPA S, LX, LXV, LT, GTS-562919 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
11 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
12 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
12 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
|||||||||
