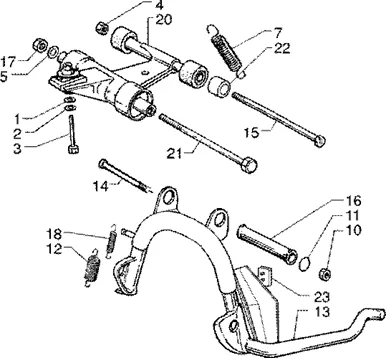

Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005 VESPA

Châssis : T20 BEQUILLE-BRAS OSCILLANT
Bequille-bras oscillant
Search
WASHER PLATE (10X37) OEM PIAGGIO COMMON A LA RANGE-122781

1
P2R reference P2R reference 65715
Maker reference Maker reference 122781

WASHER PLATE (10X37) OEM PIAGGIO COMMON A LA RANGE-122781

More information

Quantity required : 1

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

2
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410

More information

Quantity required : 1

WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790

2
P2R reference P2R reference 65789
Maker reference Maker reference 178790

WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790

More information

Quantity required : 1

560045 - VIS

3
P2R reference P2R reference 66991
Maker reference Maker reference 560045

560045-SCREW

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

4
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 2

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

5
P2R reference P2R reference 68489
Maker reference Maker reference 709037

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

More information

Quantity required : 1

SPRING DE OEM MOPED SWINGARM OEM PIAGGIO 50 VESPA LX, VESPA-S, SPRINT, PRIMAVERA 2019 <-563321

7
P2R reference P2R reference 79904
Maker reference Maker reference 563321

SPRING DE OEM MOPED SWINGARM OEM PIAGGIO 50 VESPA LX, VESPA-S, SPRINT, PRIMAVERA 2019 <-563321

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

10
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 1

GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754

11
P2R reference P2R reference 66127
Maker reference Maker reference 273754

GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754

More information

Quantity required : 2

SPRING STAND OEM PIAGGIO 50 4T LIBERTY, ZIP, VESPALX-582504

12
P2R reference P2R reference 81767
Maker reference Maker reference 582504

SPRING STAND OEM PIAGGIO 50 4T LIBERTY, ZIP, VESPALX-582504

More information

Quantity required : 1

CENTRE STAND OEM PIAGGIO 50 VESPA LX 4T 2005 >, VESPA-S 4T 2007 >, ZIP 4T 2000 >-582060

13
P2R reference P2R reference 81689
Maker reference Maker reference 582060

CENTRE STAND OEM PIAGGIO 50 VESPA LX 4T 2005 >, VESPA-S 4T 2007 >, ZIP 4T 2000 >-582060

More information

Quantity required : 1

SCREW TH (10X130) DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-030115

14
P2R reference P2R reference 65625
Maker reference Maker reference 0301155

SCREW TH (10X130) DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-030115

More information

Quantity required : 1

271779 - BOULON

15
P2R reference P2R reference 66105
Maker reference Maker reference 271779

271779-BOLT

More information

Quantity required : 1

SPACER DE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582298

16
P2R reference P2R reference 67251
Maker reference Maker reference 582298

SPACER DE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582298

More information

Quantity required : 1

020112 - ECROU S02011200

17
P2R reference P2R reference 109877
Maker reference Maker reference 0201125

020112 - ECROU S02011200

More information

Quantity required : 1

NUT FLANGE (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-261319

17
P2R reference P2R reference 66047
Maker reference Maker reference 261319

NUT FLANGE (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-261319

More information

Quantity required : 1

SPRING DE STAND OEM PIAGGIO 50 4T LIBERTY, ZIP, VESPA LX, VESPA-S-582505

18
P2R reference P2R reference 81768
Maker reference Maker reference 582505

SPRING DE STAND OEM PIAGGIO 50 4T LIBERTY, ZIP, VESPA LX, VESPA-S-582505

More information

Quantity required : 1

OEM MOPED SWINGARM OEM PIAGGIO 50-125 VESPA LX 2006 >, LXV 2006 >, VESPA-S 2007 >-56204R6

20
P2R reference P2R reference 79823
Maker reference Maker reference 56204R

OEM MOPED SWINGARM OEM PIAGGIO 50-125 VESPA LX 2006 >, LXV 2006 >, VESPA-S 2007 >-56204R6

More information

Quantity required : 1

SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS-597914

21
P2R reference P2R reference 82319
Maker reference Maker reference 597914

SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS-597914

More information

Quantity required : 1

SPACER DE OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE-562310

22
P2R reference P2R reference 67018
Maker reference Maker reference 562310

SPACER DE OEM MOPED SWINGARM OEM PIAGGIO COMMON A LA RANGE-562310

More information

Quantity required : 1

BUFFER DE STAND OEM PIAGGIO 50 VESPA LX 4T, VESPA-S 4T, ZIP 4T, LIBERTY 4T, 125 VESPA LX, VESPA-S, FLY, 400-500 BEVERLY-563984

23
P2R reference P2R reference 67043
Maker reference Maker reference 563984

BUFFER DE STAND OEM PIAGGIO 50 VESPA LX 4T, VESPA-S 4T, ZIP 4T, LIBERTY 4T, 125 VESPA LX, VESPA-S, FLY, 400-500 BEVERLY-563984

More information

Quantity required : 1

RUBBER MOUNT/BUFFER DE STAND OEM PIAGGIO 500 NEXUS, 50-125 ET4-600351

23
P2R reference P2R reference 67431
Maker reference Maker reference 600351

RUBBER MOUNT/BUFFER DE STAND OEM PIAGGIO 500 NEXUS, 50-125 ET4-600351

More information

Quantity required : 1
