Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

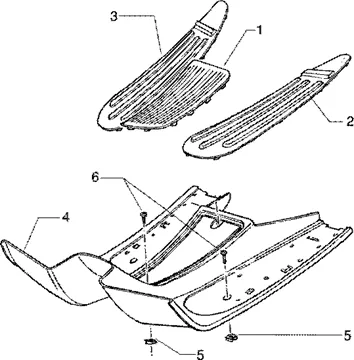

Châssis : T22 REPOSE-PIEDS-TAPIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/2/0/img/80220.jpg)
1 |
MAT MILIEU DE STEP FOOT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-57345R More informationQuantity required : 1 |
||||||
2 |
299236 - KIT TAPIS More informationQuantity required : 1 |
||||||
|
3 |
299236 - KIT TAPIS More informationQuantity required : 1 |
||||||
|
4 |
573000000D - MARCHE PIED ET2/4 50 GRIS More informationQuantity required : 1 |
||||||
|
4 |
5730000090-STEP FOOT ET2/4 50 BLACK 94 More informationQuantity required : 1 |
||||||
|
4 |
5730000090-STEP FOOT ET2/4 50 BLACK 94 More informationQuantity required : 1 |
||||||
|
4 |
57300000D1 - MARCHE PIED ET2/4 50 BLEU 251 More informationQuantity required : 1 |
||||||
|
4 |
TAPIS |
||||||
|
4 |
57300000G5-MAT More informationQuantity required : 1 |
||||||
|
4 |
TAPIS GRIS |
||||||
|
4 |
TAPIS |
||||||
|
4 |
MARCHE PIED ET2/4 50 VERT PISTACHE 396 |
||||||
|
4 |
TAPIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
