Vehicle Exploded View - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

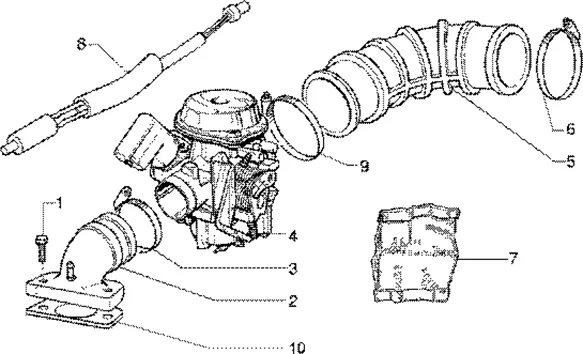

Moteur : T16 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
1 |
POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-CM147102 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
1 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
1 |
VIS |
||||||
|
2 |
GIGLEUR MAX |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/5/img/70975.jpg)
2 |
FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 LIBERTY 4T, ZIP 4T, VESPA ET 4T 1998 > 2004/APRILIA 50 SCARABEO 4T 2002 > 2009-969405 More informationQuantity required : 1 |
||||||
|
3 |
828825-EMULSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
3 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
|
4 |
TUYAU |
||||||
|
4 |
CM141901-CARBURETTOR More informationQuantity required : 1 |
||||||
|
5 |
CM142701-POINTEAU More informationQuantity required : 1 |
||||||
|
5 |
969327 - MANCHON More informationQuantity required : 1 |
||||||
|
6 |
828840-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
6 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
|
6 |
969628 - BANDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/7/img/68787.JPG)
7 |
SPRING DE SCREW OEM PIAGGIO COMMON A LA RANGE-828841 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/0/9/img/66909.jpg)
7 |
GASKET OF CUVE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-100 CC 4T-497038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/0/img/68780.jpg)
8 |
FLOTTEUR OEM PIAGGIO 50 FLY, VESPA LX, LIBERTY, ZIP 4T-828832 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/1/img/67261.jpg)
8 |
RESISTOR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-582619 More informationQuantity required : 1 |
||||||
|
9 |
CM142801 - CUVE CARBURATEUR More informationQuantity required : 1 |
||||||
|
9 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
|
10 |
CAPUCHON DE STARTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-828844 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/2/img/70962.jpg)
10 |
O-RING OEM PIAGGIO COMMON A LA RANGE-969323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/6/img/73246.jpg)
11 |
BOISSEAU/MEMBRANE OF CARBURETTOR OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, ZIP 4T, VESPA LX 4T, VESPA S 4T/APRILIA 50 SPORT-CITY 4T, SCARABEO 4T-CM146601 More informationQuantity required : 1 |
||||||
|
12 |
828824-COVER More informationQuantity required : 1 |
||||||
|
13 |
828839-PLATE More informationQuantity required : 1 |
||||||
|
14 |
828838-SLEEVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/0/9/0/img/96090.jpg)
15 |
ROD OF PUMP DE REPRISE OEM PIAGGIO 50 FLY 4T, VESPA LX 4T, PRIMAVERA, SPRINT-CM151801 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/1/img/68781.jpg)
16 |
SHAFT OF FLOTEUR KEIHIN CVK18 OEM PIAGGIO COMMON A LA RANGE-828833 More informationQuantity required : 1 |
||||||
|
17 |
828837-COVER More informationQuantity required : 1 |
||||||
|
18 |
828836-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/6/img/68776.jpg)
19 |
AGRAPHE AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-828822 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/8/img/68788.jpg)
20 |
PLATE OF CARBURETTOR OEM 50-125-200 COMMON A LA RANGE 2016 <-2828843 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/0/4/img/73204.jpg)
21 |
STARTER OEM PIAGGIO 50 4T LIBERTY, ZIP, VESPA ET4 1998 > 2005-CM142901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/9/img/68779.jpg)
22 |
SPRING SCREW OF RALENTI OEM PIAGGIO 50 FLY 4T-828830 More informationQuantity required : 1 |
||||||
|
23 |
CM151702-SCREW REG. MINI COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/9/3/img/73193.jpg)
24 |
GIGLEUR DE RALENTI OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM142302 More informationQuantity required : 1 |
||||||
|
25 |
RESSORT |
