Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

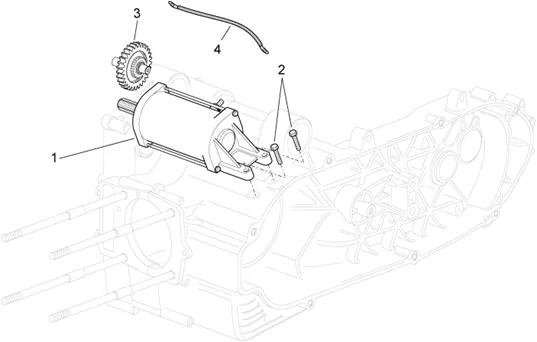

Moteur : 29.49 DEMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_29.49.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/1/6/img/81716.jpg)
1 |
STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY-58218R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/3/8/img/156038.jpg)
1 |
STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX-1A011611R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
|
2 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
3 |
8427035 - ENSAMBLE RENVOI More informationQuantity required : 1 |
||||||
|
4 |
639028 - CABLE POUR MOT.STARTER More informationQuantity required : 1 |
