Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

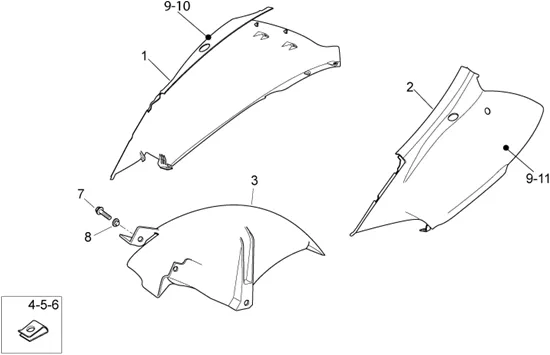

Chassis : 28.13 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.13.PNG)
1 |
67701400XD2 - QUEUE D More informationQuantity required : 1 |
||||||
|
1 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO APRILIA 125-300 ATLANTIC GREY SHOT-67701400XH2 More informationQuantity required : 1 |
||||||
|
1 |
67701400XN2 - QUEUE D More informationQuantity required : 1 |
||||||
|
1 |
67701400Z1 - QUEUE D More informationQuantity required : 1 |
||||||
|
2 |
67701500XD2 - QUEUE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/9/5/3/img/38953.jpg)
2 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC GREY SHOT -67701500XH2 More informationQuantity required : 1 |
||||||
|
2 |
67701500XN2-TAIL G * More informationQuantity required : 1 |
||||||
|
2 |
67701500Z1 - QUEUE G More informationQuantity required : 1 |
||||||
|
3 |
AP8156023 - GARDE-BOUE ARRIERE NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
6 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
7 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
8 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/9/2/3/img/38923.jpg)
9 |
DECAL- "ATLANTIC" ON REAR COWL "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC -677004- More informationQuantity required : 2 |
||||||
|
10 |
677009-DECAL More informationQuantity required : 1 |
||||||
|
10 |
67700900A1-DECAL More informationQuantity required : 1 |
||||||
|
11 |
STICKER/STICKER/GRAPHIC BODY PANEL REAR LEFT OEM PIAGGIO APRILIA ATLANTIC 125-300 2010 > 2012-677010 More informationQuantity required : 1 |
||||||
|
11 |
67701000A1 - DECALCO More informationQuantity required : 1 |
