Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

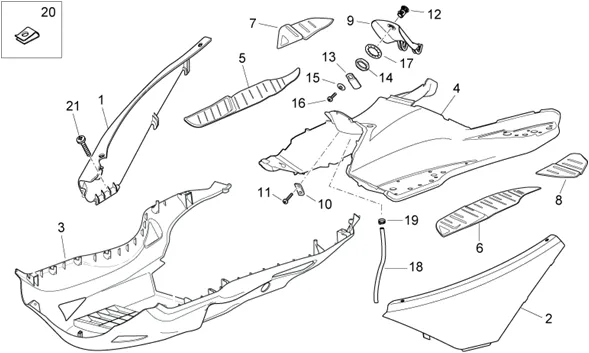

Chassis : 28.10 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.10.PNG)
1 |
63599800XB5 - DOUILLE More informationQuantity required : 1 |
||||||
|
1 |
63599800XD3 - VOLET LATERAL D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/4/8/6/img/38486.jpg)
1 |
FAIRING LATERAL RIGHT OEM APRILIA 125-300 ATLANTIC 2010 > 2012 GREY SHOT-63599800XEN More informationQuantity required : 1 |
||||||
|
1 |
63599800XND - VOLET LATERAL D More informationQuantity required : 1 |
||||||
|
2 |
63599900XB5 - VOLET LATERAL G More informationQuantity required : 1 |
||||||
|
2 |
63599900XD3 - VOLET LATERAL G More informationQuantity required : 1 |
||||||
|
2 |
63599900XEN - VOLET LATERAL G More informationQuantity required : 1 |
||||||
|
2 |
63599900XND-VOLET LATERAL G More informationQuantity required : 1 |
||||||
|
3 |
SPOILER OEM PIAGGIO APRILIA 125-250-300 ATLANTIC-AP8179049 More informationQuantity required : 1 |
||||||
|
4 |
FOOTREST/PLANCHER OEM PIAGGIO APRILIA 125-250-300 ATLANTIC-AP8178270 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/6/2/8/img/51628.jpg)
5 |
RIGHT FOOTREST MAT - GREY "PIAGGIO GENUINE PART" APRILIA 125-250-300-400-500 ATLANTIC -AP8158378- More informationQuantity required : 1 |
||||||
|
6 |
LEFT FOOTREST MAT "PIAGGIO GENUINE PARTS" APRILIA 125-250-300-400-500 ATLANTIC - GREY -AP8158379- More informationQuantity required : 1 |
||||||
|
7 |
AP8158934-MAT D GREY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/9/1/3/img/51913.jpg)
8 |
MAT PASSENGER LEFT GREY OEM PIAGGIO APRILIA 125-125-300-400-500 ATLANTIC-AP8158935 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/6/2/6/img/51626.jpg)
9 |
HATCH A FUEL OEM PIAGGIO APRILIA 125-250-300 ATLANTIC-AP8158374 More informationQuantity required : 1 |
||||||
|
10 |
AP8134799 - PLAQUETTE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
|
12 |
KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/7/5/img/55375.jpg)
13 |
LEVER OUVERTURE HATCH FUEL OEM PIAGGIO APRILIA ATLANTIC, CAPONORD, 50 RALLY, 50-125 RS, RX, SX-AP8201620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
14 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
15 |
WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
16 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
17 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
18 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
19 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
20 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 1 |
||||||
|
21 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
