Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

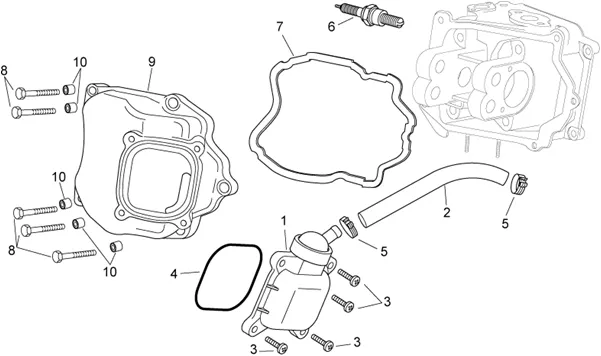

Moteur : 29.42 SOUPAPE RENIFLARD HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_29.42.PNG)
1 |
OIL DRAINING BODY "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO MAXISCOOTERS -1A010691R More informationQuantity required : 1 |
||||||
|
1 |
OIL DRAINING BODY "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO MAXISCOOTERS -1A010691R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/1/1/img/69311.jpg)
2 |
HOSE RENIFLARD ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-844094 More informationQuantity required : 1 |
||||||
|
3 |
877136-BOLT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/1/img/139391.jpg)
4 |
GASKET OF COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-1A003985 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
5 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/4/5/img/67845.jpg)
6 |
SPARK PLUG CR8EKB OEM PIAGGIO 125-300 MP3, BEVERLY, X7, GTS/APRILIA 125 ATLANTIC/GILERA 125 NEXUS/MOTO-GUZZI GRISO, NORGE, STELVIO-639687 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/5/img/68855.jpg)
7 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO 125-250-300 MP3, BEVERLY, VESPA GTS, 125 X-EVO, 125 X10/APRILIA 125-250-300 ATLANTIC, SR MAX/GILERA 125 NEXUS, RUNNER-829536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/6/img/70436.jpg)
8 |
SCREW COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-872635 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/4/img/68854.jpg)
9 |
COVER CYLINDER HEAD OEM PIAGGIO 125-250-300 COMMON A LA RANGE-829534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/2/img/68902.jpg)
10 |
GASKET OF SCREW COVER DE CYLINDER HEAD OEM PIAGGIO 125-400-500 MP3, BEVERLY, 125-350 X10/APRILIA 750 DORSODURO, SHIVER, 850 SRV/GILERA 250-300-500 ATLANTIC, NEXUS/MOTO-GUZZI 1200 SPORT, GRISO-830249 More informationQuantity required : 5 |
