Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

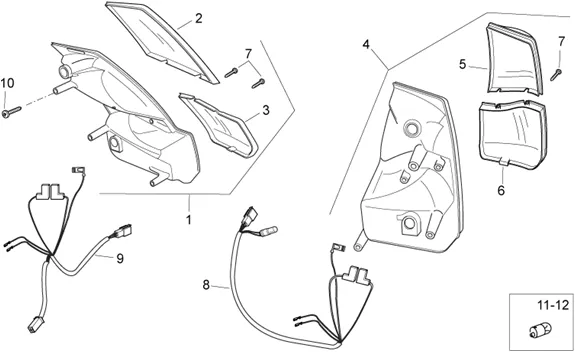

Chassis : 28.32 FEU ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/2/0/img/38520.jpg)
1 |
LAMP REAR RIGHT OEM PIAGGIO APRILIA 125-300 ATLANTIC 2010 > 2012-642102 More informationQuantity required : 1 |
||||||
2 |
642134 - TRANSPARENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/2/5/img/38525.jpg)
3 |
CABOCHON OF REAR LIGHT RIGHT OEM PIAGGIO 125-250-300-400-500 ATLANTIC-642133 More informationQuantity required : 1 |
||||||
|
4 |
TAILLIGHT- LEFT "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010>2012 -642103- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/2/8/img/38528.jpg)
5 |
CABOCHON OF REAR LIGHT LEFT UPPER TRANSPARENT OEM APRILIA 125-300 ATLATIC 2010 > 2012-642136 More informationQuantity required : 1 |
||||||
|
6 |
CABOCHON OF REAR LIGHT LEFT OEM PIAGGIO 125-250-300-400-500 ATLANTIC-642135 More informationQuantity required : 1 |
||||||
|
7 |
642143-SCREW AUTORANDEUSE More informationQuantity required : 4 |
||||||
|
8 |
AP8127392 - CABLAGE FEU AR G; More informationQuantity required : 1 |
||||||
|
9 |
AP8127249 - CABLAGE FEU AR D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
10 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
11 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
12 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 2 |
