Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

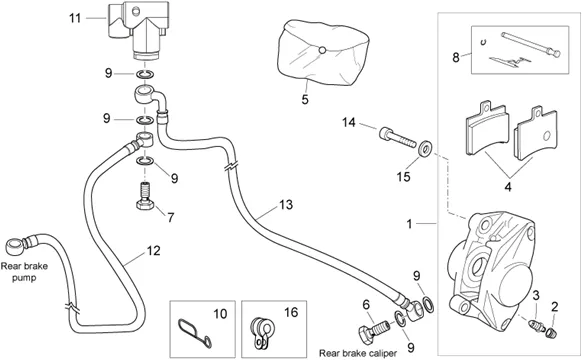

Chassis : 28.30 PINCE FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/6/1/7/img/38617.jpg)
1 |
FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010> -666358- More informationQuantity required : 1 |
||||||
2 |
AP8213575-CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
|
3 |
AP8213574-SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/1/img/72221.jpg)
4 |
BRAKE PAD REAR OEM PIAGGIO APRILIA 125-300 ATLANTIC 2010 > (PAIRE)-AP8213577 More informationQuantity required : 1 |
||||||
|
5 |
AP8213579-KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
|
7 |
597633-FITTING HOSE OF BRAKE M27 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/2/img/72222.jpg)
8 |
KIT SPRING BRAKE CALIPER REAR OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY, ATLANTIC, SCARABEO-AP8213578 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 5 |
||||||
|
10 |
AP8202159-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
11 |
666353 - VOLET DE GAZ More informationQuantity required : 1 |
||||||
|
12 |
858233 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
13 |
666992-HOSE BRAKE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/7/img/71827.jpg)
14 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8150164 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
15 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/2/img/71642.jpg)
16 |
CLAMP GUIDE HOSE OF BRAKE OEM PIAGGIO COMMON A LA RANGE-AP8132907 More informationQuantity required : 1 |
