Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

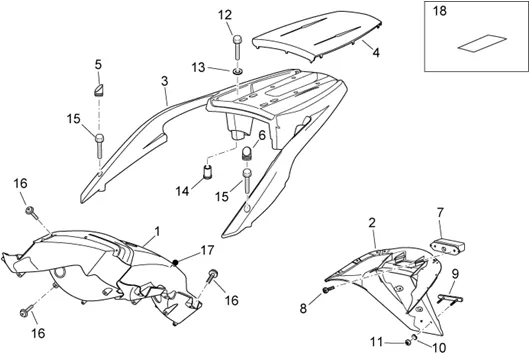

Chassis : 28.14 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.14.PNG)
1 |
63600200XB5 - COFFRE AR. More informationQuantity required : 1 |
||||||
|
1 |
63600200XD3-UNDERSEAT COMPARTMENT AR. More informationQuantity required : 1 |
||||||
|
1 |
63600200XEN - COFFRE AR. More informationQuantity required : 1 |
||||||
|
1 |
63600200XND - COFFRE AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/9/3/8/img/47938.jpg)
2 |
MUD FLAP REAR OEM PIAGGIO APRILIA 125-250-300 ATLANTIC 2003 > 2012-AP8126961 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/7/2/2/img/38722.jpg)
3 |
LUGGAGE RACK "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC BLACK -67222100XEN More informationQuantity required : 1 |
||||||
|
4 |
AP8179723 - COPERCHIO PORTAP.V.GRIGIO DUST More informationQuantity required : 1 |
||||||
|
5 |
67222200XH3 - BOUCHON More informationQuantity required : 1 |
||||||
|
6 |
67222300XH3-LH PLUG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/5/9/img/48059.jpg)
7 |
LAMP DE PLATE IMMATRICULATION OEM PIAGGIO APRILIA 125-250-300 ATLANTIC 2012 <-AP8127261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
9 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
10 |
WASHER 4X16 OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150159 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/5/img/71955.jpg)
12 |
SCREW FLANGE TH (8X60) OEM PIAGGIO COMMON A LA RANGE-AP8152293 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
13 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 2 |
||||||
|
14 |
AP8121635 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
15 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
16 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 6 |
||||||
|
17 |
AP8177261-TARGHETTA " APRILIA " LAT. CAR. More informationQuantity required : 1 |
||||||
|
18 |
852183 - ADHESIVE TAPE More informationQuantity required : 2 |
