Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

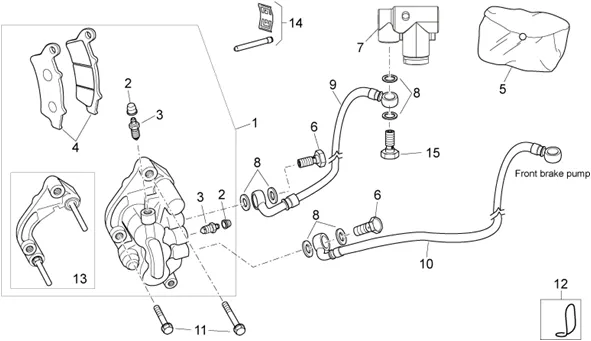

Chassis : 28.28 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.28.PNG)
1 |
666306 - PINCE FREIN More informationQuantity required : 1 |
||||||
|
2 |
AP8133813 - CAPPUCCIO SPURGO ARIA More informationQuantity required : 2 |
||||||
|
3 |
AP8133814-SPURGO ARIA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/4/1/img/72241.jpg)
4 |
BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010> FRONT (PAIR) -AP8213648 More informationQuantity required : 1 |
||||||
|
5 |
AP8133816-KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
|
7 |
666353 - VOLET DE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 6 |
||||||
|
9 |
858234-TUBE BRAKE FRONT More informationQuantity required : 1 |
||||||
|
10 |
858232 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
11 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 2 |
||||||
|
12 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
13 |
AP8133817-BRACKET PINZA ASSEMBLATO * More informationQuantity required : 1 |
||||||
|
14 |
AP8133818-PERNI CON MOLLE PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
15 |
SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451 More informationQuantity required : 1 |
