Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

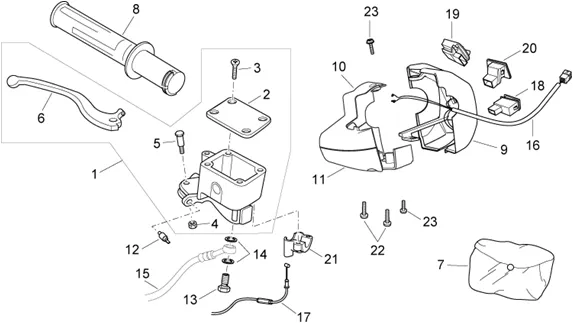

Chassis : 28.18 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.18.PNG)
1 |
RIGHT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 125-250-300-400-500 SCARABEO, ATLANTIC -AP8133734- More informationQuantity required : 1 |
||||||
|
2 |
AP8133808 - COPERCHIO POMPA More informationQuantity required : 1 |
||||||
|
3 |
AP8133807-SCREW COVER PUMP More informationQuantity required : 4 |
||||||
|
4 |
AP8213585-DADO More informationQuantity required : 1 |
||||||
|
5 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/0/3/img/48803.jpg)
6 |
BRAKE LEVER FRONT OEM PIAGGIO APRILIA 125-250-300-400-500 ATLANTIC, SCARABEO-AP8133811 More informationQuantity required : 1 |
||||||
|
7 |
AP8133812-KIT REVISIONE PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/8/3/img/46383.jpg)
8 |
PAIRE DE GRIP/REVETTEMENT OEM PIAGGIO APRILIA 125-250-300-400-500 ATLANTIC-AP8118656 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/8/9/0/img/51890.jpg)
9 |
COQUE SUPERIEURE DE COMMODO RIGHT OEM PIAGGIO 125-250-300-400-500 ATLANTIC 2003 > 2012-AP8158897 More informationQuantity required : 1 |
||||||
|
10 |
AP8158932-COQUE SUP. D More informationQuantity required : 1 |
||||||
|
11 |
UPPER SHELL FOR RIGHT SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 ATLANTIC 2003>2012 -AP8158930- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
12 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
13 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
14 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
15 |
858232 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
16 |
AP8127393 - CABLAGE CLIGNOTANTS D; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/6/2/5/img/38625.jpg)
17 |
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 125-250-300 ATLANTIC -CM060978 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/8/img/47448.jpg)
18 |
BUTTON/CONTACTEUR DE STARTER MOTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124208 More informationQuantity required : 1 |
||||||
|
19 |
AP8224447 - DISP. ENGINE STP-START More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/0/4/img/45404.jpg)
20 |
CAP SWITCH OEM APRILIA 125-200-250 ATLANTIC 2003 > 2012-AP8104546 More informationQuantity required : 1 |
||||||
|
21 |
AP8118582-SIEGE COMM. THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
22 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
23 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 2 |
