Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

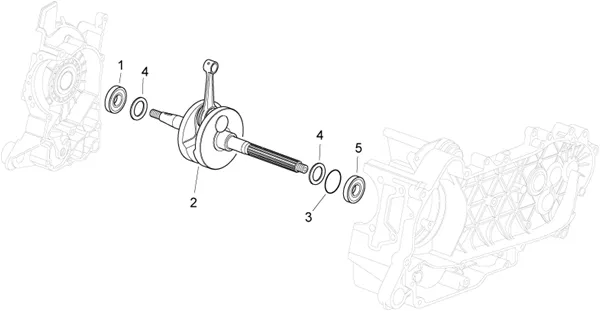

Moteur : 29.38 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_29.38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/5/img/68805.jpg)
1 |
OIL SEAL (20X30X7) VILEBREQUIN COTE IGNITION OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, GTS 2007 >/125 NEXUS 2007 >, RUNNER 4T 2005 >-82898R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/2/4/img/68924.jpg)
2 |
EMBIELLAGE/VILEBREQUIN MAXI SCOOTER OEM PIAGGIO 300 BEVERLY, MP3, X7, VESPA GTS/GILERA 300 NEXUS, SR-MAX/APRILIA 300 ATLANTIC, SCARABEO, SPORT-CITY (CAT-1)-1A013591R01 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/9/9/9/img/155999.jpg)
2 |
EMBIELLAGE/VILEBREQUIN MAXI SCOOTER OEM PIAGGIO 300 BEVERLY, MP3, X7, VESPA GTS/GILERA 300 NEXUS, SR-MAX/APRILIA 300 ATLANTIC, SCARABEO, SPORT-CITY (CAT-2)-1A013591R02 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/3/img/68573.jpg)
3 |
O RING OF SPROCKET OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-825952 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/2/img/68742.jpg)
4 |
WASHER DE VILEBREQUIN OEM PIAGGIO 125-200-300 2005 <-828297 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/5/img/68775.jpg)
5 |
GASKET SHAFT TRANSMISSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82878R More informationQuantity required : 1 |
