Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

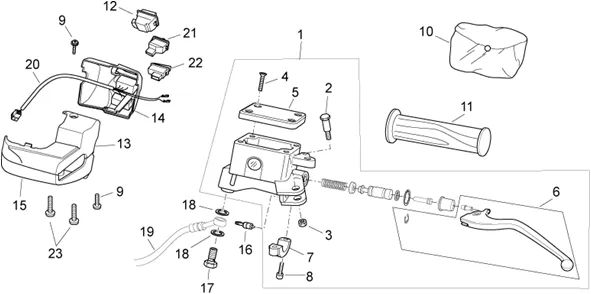

Chassis : 28.17 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.17.PNG)
1 |
AP8133733 - POMPA FRENO POST.SX More informationQuantity required : 1 |
||||||
|
2 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
3 |
AP8213585-DADO More informationQuantity required : 1 |
||||||
|
4 |
AP8133807-SCREW COVER PUMP More informationQuantity required : 4 |
||||||
|
5 |
858492-COVER PUMP More informationQuantity required : 1 |
||||||
|
6 |
AP8133809-LEVA BRAKE * More informationQuantity required : 1 |
||||||
|
7 |
AP8213586-CAVALLOTTO LEVA BRAKE More informationQuantity required : 1 |
||||||
|
8 |
AP8213582-SCREW CAPPELLOTTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
9 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 2 |
||||||
|
10 |
AP8133810 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/8/3/img/46383.jpg)
11 |
PAIRE DE GRIP/REVETTEMENT OEM PIAGGIO APRILIA 125-250-300-400-500 ATLANTIC-AP8118656 More informationQuantity required : 1 |
||||||
|
12 |
AP8124622 - DEVIATEUR FEUX More informationQuantity required : 1 |
||||||
|
13 |
AP8158933 - COQUE SUP.G; More informationQuantity required : 1 |
||||||
|
14 |
AP8158898 - LOG.COMMANDES EL.G NOIR; More informationQuantity required : 1 |
||||||
|
15 |
AP8158931-COQUE INFERIEURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
16 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
17 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
18 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
19 |
858233 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
20 |
642991-WIRING CLIGNOTANTS G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
21 |
BUTTON/CONTACTEUR INDICATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8215767 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
22 |
BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
23 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 2 |
