Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

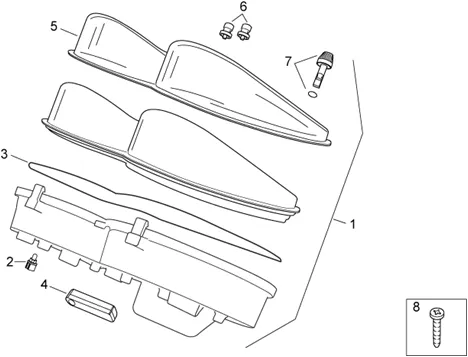

Chassis : 28.15 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.15.PNG)
1 |
642097-GROUP INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/7/img/66007.jpg)
2 |
AMPOULE/LAMPE WITH BRACKET (12V-1, 2 W) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-253366 More informationQuantity required : 12 |
||||||
|
3 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
4 |
HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406 More informationQuantity required : 1 |
||||||
|
5 |
AP8127453-PROT. VITRE TABL. EDGE More informationQuantity required : 1 |
||||||
|
6 |
AP8144595 - CAOUTCHOUC HORLOGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/8/0/img/49780.jpg)
7 |
POUSSOIR DE REMISE A ZERO DU INSTRUMENT CLUSTER OEM PIAGGIO APRILIA 125-250-300-400-500 ATLANTIC-AP8144596 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 5 |
