Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

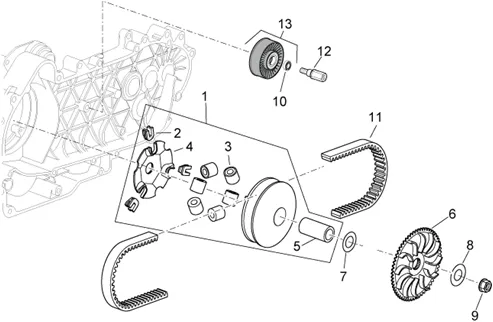

Moteur : 29.48 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_29.48.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/1/8/img/157618.jpg)
0 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 300 MP3, YOURBAN 2011-2018, X7 2008 >, VESPA GTS 2010 >,/GILERA 250-300 NEXUS 2010 >/APRILIA 250-300 ATLANTIC, SR-MAX 2011 >-1R000447 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/5/1/img/139451.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS, X7/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO, SPORT-CITY CUB, 300 SR-MAX-CM1444085 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/5/5/img/69255.jpg)
2 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 250-300 MP3 2006 >, X7, VESPA GTS 2005 >, BEVERLY, 250 X8, X9, X-EVO/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO-843028 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/4/img/69604.jpg)
3 |
GALET/ROLLER MAXI SCOOTER OEM PIAGGIO APRILIA 250-300 ATLANTIC/GILERA 250-300 NEXUS/PIAGGIO 250-300 BEVERLY, 300 MP3, YOURBAN, VESPA 300 GTS (14 G) (VENDU A L UNITE)-849480 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/0/img/66690.jpg)
4 |
FLASQUE A ROULEAUX PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-485710 More informationQuantity required : 1 |
|||||||||
5 |
483889-SPACER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/6/img/69136.jpg)
6 |
JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE 250-300 MAXI SCOOTER-840193 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/2/img/66462.jpg)
7 |
WASHER PLATE (17X32X1) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-434885 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/3/img/70743.jpg)
8 |
WASHER ELASTIC DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-880950 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/9/img/66709.jpg)
9 |
NUT (M12X1. 25) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-486324 More informationQuantity required : 1 |
|||||||||
|
10 |
82843R - PALIER RADIAL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/3/img/68843.jpg)
11 |
BELT "PIAGGIO GENUINE PART" 250 X9-EVO, MP3, X7, X8, X-EVO, VESPA GTS, 300 MP3, VESPA GTS/APRILIA 300 SR-MAX/GILERA 250-300 NEXUS -82941R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/6/img/68736.jpg)
12 |
SCREW PULLEY DE BELT OEM PIAGGIO COMMON A LA RANGE 200-250-300-828217 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/4/img/69094.jpg)
13 |
PULLEY DE BELT OEM PIAGGIO 250-300 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X9, 125 X10/APRILIA 125-300 ATLANTIC/GILERA 250-300 NEXUS-833989 More informationQuantity required : 1 |
|||||||||
