Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

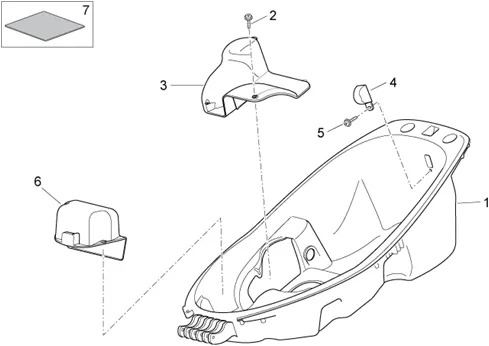

Chassis : 28.11 DESSOUS SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.11.PNG)
1 |
AP8179447-VANO PORTACASCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
2 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 2 |
||||||
|
3 |
AP8178619 - COPERCHIO ACCESSO TESTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/0/5/img/56305.jpg)
4 |
CAPOT DE LAMPE DE UNDERSEAT COMPARTMENT OEM ATLANTIC 125-200-250-300-400-500-AP8212733 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
5 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
|
6 |
AP8158394 - COUVERCLE BATTERIE; More informationQuantity required : 1 |
||||||
|
7 |
AP8144288-EMBOUT APPUI BATTERY LAT. More informationQuantity required : 1 |
