Vehicle Exploded View - APRILIA ATLANTIC 300 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

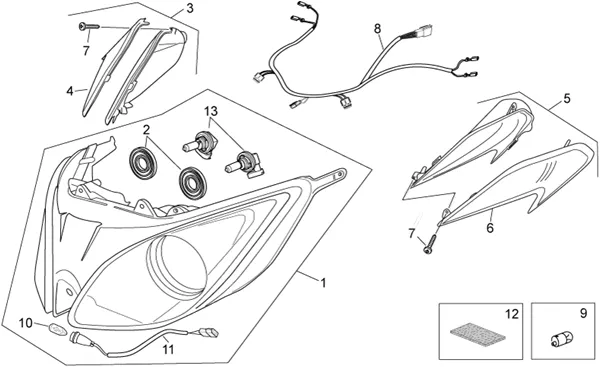

Chassis : 28.31 FEU AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/241/Atlantic_300_2010-2012_28.31.PNG)
1 |
854894-HEADLAMP AVT ATLANTIQUE More informationQuantity required : 1 |
||||||
|
2 |
AP8127442-COIFFE HEADLAMP More informationQuantity required : 2 |
||||||
|
3 |
642100-INDICATOR More informationQuantity required : 1 |
||||||
|
4 |
642137 - TRANSPARENT More informationQuantity required : 1 |
||||||
|
5 |
642101-INDICATOR More informationQuantity required : 1 |
||||||
|
6 |
642138 - TRANSPARENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
7 |
SCREW AUTOTARAUDEUSE (3, 5X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-018536 More informationQuantity required : 2 |
||||||
|
8 |
AP8127248 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
9 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/1/img/67791.jpg)
10 |
AMPOULE/LAMPE 12V 16W T15 OEM PIAGGIO COMMON A LA RANGE-638536 More informationQuantity required : 1 |
||||||
|
11 |
AP8127488-CABLES LAMP DE POSITION More informationQuantity required : 1 |
||||||
|
12 |
AP8144529-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/8/img/67898.jpg)
13 |
AMPOULE/LAMPE 12V 55W H11 OEM PIAGGIO COMMON A LA RANGE-640754 More informationQuantity required : 2 |
