Vehicle Exploded View - PIAGGIO X9 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

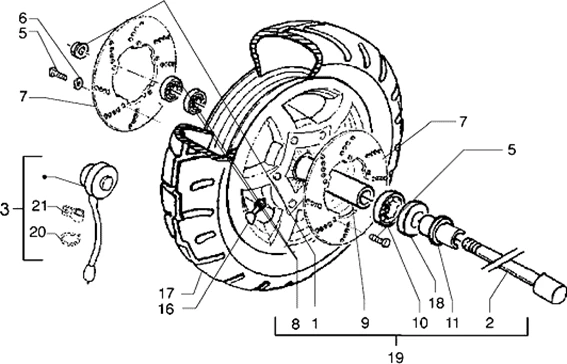

Suspensions-roues : T51 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T51.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/6/img/15706.jpg)
0 |
TYRE FOR SCOOT 14'' 120/70-14 MICHELIN CITY GRIP FRONT TL 55S More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
1 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/4/img/67054.jpg)
2 |
564446 - AXE ROUE More informationQuantity required : 1 |
|||||||||
2 |
597897 - AXE ROUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/2/img/67052.jpg)
3 |
SPEEDOMETER ENCODER "PIAGGIO GENUINE PART" 50 NRG 2006>, 125-250 X9/GILERA 50-125 RUNNER -56435R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
5 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 10 |
|||||||||
|
6 |
274706 - RONDELLE More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/0/1/img/80001.jpg)
7 |
FRONT/REAR BRAKE DISC "PIAGGIO GENUINE PART" 125-250-300 BEVERLY, CARNABY -56397R More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
8 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 2 |
|||||||||
|
9 |
564447 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
10 |
649911 - ROULEMENT More informationQuantity required : 1 |
|||||||||
|
11 |
564448 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
16 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
|||||||||
|
17 |
648065 - PNEU 120/70-14" (DITTA PIRELLI) More informationQuantity required : 1 |
|||||||||
|
18 |
564489 - GODET More informationQuantity required : 1 |
|||||||||
|
19 |
597897T - ROUE AV. More informationQuantity required : 1 |
|||||||||
|
19 |
56374R - ROUE AV. More informationQuantity required : 1 |
|||||||||
