Vehicle Exploded View - PIAGGIO X9 500 1998-2005 PIAGGIO

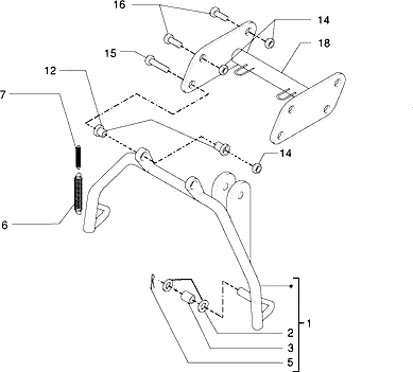

Châssis : T22/A BEQUILLE CENTRALE
Bequille centrale
Search
583944 - BEQUILLE

1
P2R reference P2R reference 81982
Maker reference Maker reference 583944

583944 - BEQUILLE

More information

Quantity required : 1

1
P2R reference P2R reference
Maker reference Maker reference 5830535

003058 - RONDELLE S00305800

2
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 2

583342 - TAMPON

3
P2R reference P2R reference 67284
Maker reference Maker reference 583342

583342 - TAMPON

More information

Quantity required : 1

5
P2R reference P2R reference
Maker reference Maker reference 0127705

SPRING - FOR CENTRAL STAND (big one) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -583161

6
P2R reference P2R reference 67277
Maker reference Maker reference 583161

SPRING - FOR CENTRAL STAND (BIG ONE) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -583161

More information

Quantity required : 1

SPRING - FOR CENTRAL STAND (small one)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -583162

7
P2R reference P2R reference 67278
Maker reference Maker reference 583162

SPRING - FOR CENTRAL STAND (SMALL ONE)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -583162

More information

Quantity required : 1

BUSHING "PIAGGIO GENUINE PART" -647225

12
P2R reference P2R reference 68014
Maker reference Maker reference 647225

BUSHING "PIAGGIO GENUINE PART" -647225

More information

Quantity required : 4

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440

14
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440

More information

Quantity required : 2

583480 - BOULON

15
P2R reference P2R reference 67285
Maker reference Maker reference 583480

583480 - BOULON

More information

Quantity required : 2

031153 - BOULON S03115300

16
P2R reference P2R reference 65650
Maker reference Maker reference 0311535

031153 - BOULON S03115300

More information

Quantity required : 2

5833774 - PLAQUE

18
P2R reference P2R reference 81908
Maker reference Maker reference 5833774

5833774 - PLAQUE

More information

Quantity required : 1
