Vehicle Exploded View - PIAGGIO X9 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

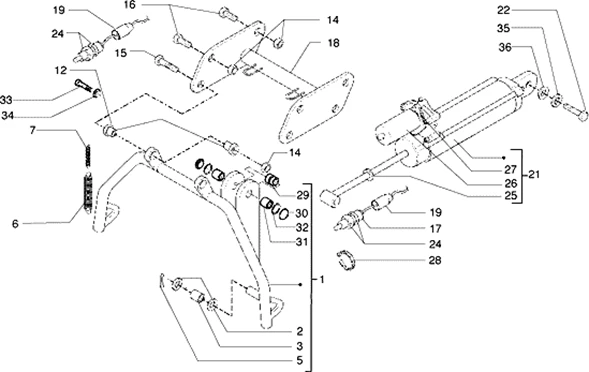

Châssis : T22 BÉQUILLE ÉLECTRO-HYDRAULIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T22.PNG)
1 |
BEQUILLE VOIR ART. 583945 |
||||||
|
1 |
583944 - BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
2 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/4/img/67284.jpg)
3 |
583342 - TAMPON More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/7/img/67277.jpg)
6 |
SPRING - FOR CENTRAL STAND (BIG ONE) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -583161 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/8/img/67278.jpg)
7 |
SPRING - FOR CENTRAL STAND (SMALL ONE)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -583162 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/4/img/68014.jpg)
12 |
BUSHING "PIAGGIO GENUINE PART" -647225 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
14 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/5/img/67285.jpg)
15 |
583480 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/0/img/65650.jpg)
16 |
031153 - BOULON S03115300 More informationQuantity required : 4 |
||||||
|
17 |
639202 - COMMUTATEUR More informationQuantity required : 2 |
||||||
|
18 |
5833774 - PLAQUE More informationQuantity required : 1 |
||||||
|
19 |
CAPUCHON |
||||||
|
21 |
583536 - ELECTRICAL ACTUATEUR More informationQuantity required : 1 |
||||||
|
22 |
031117 - BOULON S03111700 More informationQuantity required : 2 |
||||||
|
24 |
582391 - DOUILLE More informationQuantity required : 4 |
||||||
|
25 |
Moyeu |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/9/img/70939.jpg)
26 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2005>, LIBERTY 4 STROKE2005>, NRG PURE-JET, ZIP 4 STROKE 2000>/GILERA 50 RUNNER PURE-JET/VESPA LX 4 STROKE2005>, PRIMAVERA 4 STROKE2013>, VESPA S 4 STROKE 2008> -96921R More informationQuantity required : 1 |
||||||
|
27 |
Circlips |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
28 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
|
29 |
235661 - BOURRAGE More informationQuantity required : 1 |
||||||
|
30 |
582893 - BOUCHON More informationQuantity required : 2 |
||||||
|
31 |
ROULEMENT |
||||||
|
32 |
Circlips |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
33 |
031119 - BOULON More informationQuantity required : 1 |
||||||
|
34 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
35 |
016626 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
36 |
016410 - ANNEAU More informationQuantity required : 1 |
