Vehicle Exploded View - PIAGGIO X9 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

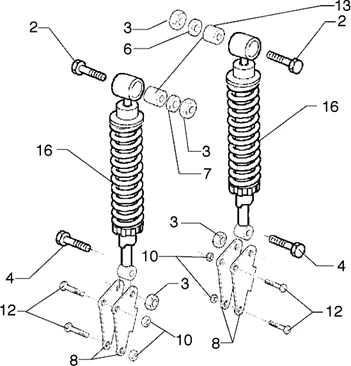

Suspensions-roues : T35 AMORTISSEURS AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T35.PNG)
1 |
56229R - AMMORTISSEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/4/img/65384.jpg)
2 |
SCREW - SHOCK ABSORBER FASTENING "PIAGGIO GENUINE PART" 125-250 X9, 125 VESPA PX/PIAGGIO APE -015594 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
3 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
4 |
SCREW - FOR REAR SHOCK ABSORBER"PIAGGIO GENUINE PARTS" FOR ALL THE RANGE -268158 More informationQuantity required : 2 |
||||||
|
6 |
597179 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
7 |
597178 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
8 |
Support |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
10 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
12 |
844483 - VIS More informationQuantity required : 4 |
||||||
|
16 |
56229R - AMMORTISSEUR More informationQuantity required : 1 |
