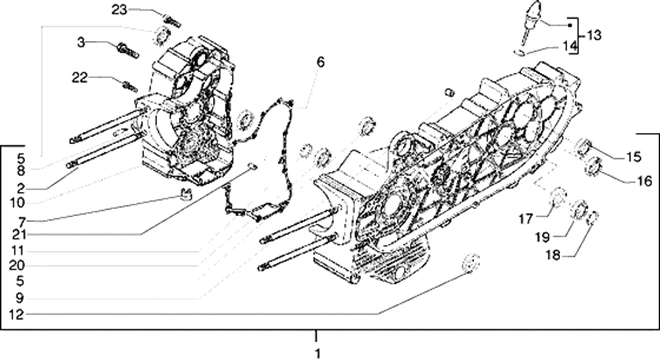

Vehicle Exploded View - PIAGGIO X9 500 1998-2005 PIAGGIO

Moteur : T2 CARTER
Carter
Search

1
P2R reference P2R reference
Maker reference Maker reference CM11450150015

1
P2R reference P2R reference
Maker reference Maker reference CM11450150025

1A003631R - GOUJON

2
P2R reference P2R reference 109026
Maker reference Maker reference 1A003631R

1A003631R - GOUJON

More information

Quantity required : 4

B016762 - VIS M6X65

3
P2R reference P2R reference 72714
Maker reference Maker reference B016762

B016762 - VIS M6X65

More information

Quantity required : 12

411296 - ECROU

4
P2R reference P2R reference 66358
Maker reference Maker reference 411296

411296 - ECROU

More information

Quantity required : 4

CRANKCASE BEARING (20x42x10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -82656R

5
P2R reference P2R reference 68609
Maker reference Maker reference 82656R

CRANKCASE BEARING (20X42X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -82656R

More information

Quantity required : 2

828114 - JOINT

6
P2R reference P2R reference 68728
Maker reference Maker reference 828114

828114 - JOINT

More information

Quantity required : 1

B015433 - PLUG VISSES

7
P2R reference P2R reference 72673
Maker reference Maker reference B015433

B015433 - PLUG VISSES

More information

Quantity required : 2

484034 - GICLEUR

8
P2R reference P2R reference 66654
Maker reference Maker reference 484034

484034 - GICLEUR

More information

Quantity required : 1

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956

9
P2R reference P2R reference 72696
Maker reference Maker reference B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956

More information

Quantity required : 2

10
P2R reference P2R reference
Maker reference Maker reference 8300365

CRANKCASE BEARING "PIAGGIO GENUINE PART" 500 BEVERLY, X9/GILERA 500 NEXUS/APRILIA 500 ATLANTIC, 125 RS, RX, SX -82668R

10
P2R reference P2R reference 68611
Maker reference Maker reference 82668R

CRANKCASE BEARING "PIAGGIO GENUINE PART" 500 BEVERLY, X9/GILERA 500 NEXUS/APRILIA 500 ATLANTIC, 125 RS, RX, SX -82668R

More information

Quantity required : 2

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647

11
P2R reference P2R reference 63825
Maker reference Maker reference 0066475

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647

More information

Quantity required : 1

GASKET RING- ENGINE CRANKCASE (35x47x7) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -873932

12
P2R reference P2R reference 70512
Maker reference Maker reference 873932

GASKET RING- ENGINE CRANKCASE (35X47X7) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -873932

More information

Quantity required : 1

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130

13
P2R reference P2R reference 68991
Maker reference Maker reference 832130

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130

More information

Quantity required : 1

827085 - JOINT

14
P2R reference P2R reference 68643
Maker reference Maker reference 827085

827085 - JOINT

More information

Quantity required : 1

BEARING FOR TRANSMISSION REDUCER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR -833701

15
P2R reference P2R reference 69082
Maker reference Maker reference 833701

BEARING FOR TRANSMISSION REDUCER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR -833701

More information

Quantity required : 1

BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R

16
P2R reference P2R reference 68899
Maker reference Maker reference 83018R

BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R

More information

Quantity required : 1

SEAL RING GASKET- TRANSMISSION (25x40x7) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR 400-500 -873931

17
P2R reference P2R reference 70511
Maker reference Maker reference 873931

SEAL RING GASKET- TRANSMISSION (25X40X7) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR 400-500 -873931

More information

Quantity required : 1

CIRCLIPS (25x26,9x1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959

18
P2R reference P2R reference 72699
Maker reference Maker reference B015959

CIRCLIPS (25X26,9X1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959

More information

Quantity required : 1

TRANSMISSION BEARING (52X25X15) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -825233

19
P2R reference P2R reference 68526
Maker reference Maker reference 825233

TRANSMISSION BEARING (52X25X15) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -825233

More information

Quantity required : 1

CRANKCASE BEARING "PIAGGIO GENUINE PART" 500 BEVERLY, X9/GILERA 500 NEXUS/APRILIA 500 ATLANTIC, 125 RS, RX, SX -82668R

20
P2R reference P2R reference 68611
Maker reference Maker reference 82668R

CRANKCASE BEARING "PIAGGIO GENUINE PART" 500 BEVERLY, X9/GILERA 500 NEXUS/APRILIA 500 ATLANTIC, 125 RS, RX, SX -82668R

More information

Quantity required : 1

827234 - ROULEMENT

20
P2R reference P2R reference 68659
Maker reference Maker reference 827234

827234 - ROULEMENT

More information

Quantity required : 1

1A003080 - GOUJON M10X1.25X51

24
P2R reference P2R reference 109084
Maker reference Maker reference 1A003080

1A003080 - GOUJON M10X1.25X51

More information

Quantity required : 2
