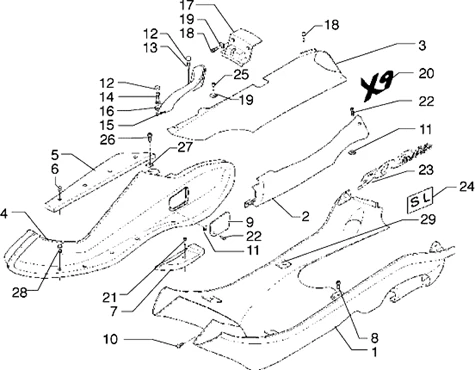

Vehicle Exploded View - PIAGGIO X9 500 1998-2005

	P2R reference	81394
	Maker reference	577996000P

SPOILER "PIAGGIO GENUINE PART" 500 X9 EVO BLACK -577996000P-

	P2R reference	81395
	Maker reference	57799600D1

SPOILER "PIAGGIO GENUINE PART" 250 X9 EVO BLUE 251 -57799600D1-

	P2R reference	81396
	Maker reference	57799600E8

SPOILER GREY "PIAGGIO GENUINE PART" 125-250 X9 -57799600E8

	P2R reference	81397
	Maker reference	577997000P

577997000P - FLANC GAUCHE INFERIEUR NOIR

	P2R reference	81398
	Maker reference	57799700D1

57799700D1 - FLANC GAUCHE INFERIEUR BLEU AZUR 251

	P2R reference	81399
	Maker reference	57799700E8

57799700E8 - FLANC GAUCHE INFERIEUR GRIS

	P2R reference	81400
	Maker reference	577998000P

REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" PIAGGIO 125-250-500 X9 BLACK -577998000P

	P2R reference	81402
	Maker reference	57799800D1

57799800D1 - FLANC DRT INFERIEUR X9 BLEU AZUR 251

	P2R reference	81403
	Maker reference	57799800E8

57799800E8 - FLANC DRT INFERIEUR X9 GRIS

	P2R reference	83618
	Maker reference	6204250090

REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250 X9 BLACK 94 -6204250090

	P2R reference	83619
	Maker reference	62042500A7

62042500A7 - LATERAL X9 GAUCHE PLATINUM 686

	P2R reference	83620
	Maker reference	62042500D1

62042500D1 - COUVRE CHASSIS

	P2R reference	83627
	Maker reference	62042500G9

62042500G9 - COUVRE CHASSIS

	P2R reference	83628
	Maker reference	62042500N3

62042500N3 - COUVRE CHASSIS X9 GAUCHE

	P2R reference	83630
	Maker reference	62042500R8

62042500R8 - COUVRE CHASSIS

	P2R reference
	Maker reference	57556550G9

AILE SUP DROITE X9 JAUNE 384

	P2R reference	83635
	Maker reference	6204260090

REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-250-500 X9 BLUE 211/A -6204260090-

	P2R reference	83636
	Maker reference	62042600A7

62042600A7 - LATERAL X9 DROITE PLATINUM 686

	P2R reference	83632
	Maker reference	620426

620426 - LATERAL AR.

	P2R reference	83645
	Maker reference	62042600R8

62042600R8 - LATERAL DX

	P2R reference	83409
	Maker reference	62000300E8

62000300E8 - REPOSE-PIEDS

	P2R reference	84602
	Maker reference	62236800E8

62236800E8 - REPOSE-PIEDS

	P2R reference	80631
	Maker reference	575597

RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" 125-250-500 -575597

	P2R reference	80632
	Maker reference	575598

LEFT FOOTREST MAT "PIAGGIO GENUINE PART" 125-250-500 -575598-

	P2R reference	95090
	Maker reference	CM011101

FOOT REST PIN "PIAGGIO GENUINE PART" MP3, X10, X9, BEVERLY -CM011101

	P2R reference	80952
	Maker reference	57676100E8

57676100E8 - REPOSE-PIEDS SX

	P2R reference	80953
	Maker reference	57676300E8

57676300E8 - REPOSE-PIEDS

	P2R reference	66117
	Maker reference	272836

SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836

	P2R reference	80628
	Maker reference	57557700E8

57557700E8 - ABATTANT BOUGIE

	P2R reference	80816
	Maker reference	576296

576296 - ABATTANT

	P2R reference	66028
	Maker reference	258249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	80699
	Maker reference	575860

575860 - BOUCHON

	P2R reference	65442
	Maker reference	0185645

018564 - VIS

	P2R reference	67104
	Maker reference	574260

574260 - VIS

	P2R reference	80624
	Maker reference	575572000C

575572000C - POIGNEE G

	P2R reference	80625
	Maker reference	575573000C

575573000C - POIGNEE D

	P2R reference	65362
	Maker reference	0137775

013777 - RONDELLE S01377700

	P2R reference
	Maker reference	5755715090

COUVERCLE FEU ARRIERE X9 NOIR 94

	P2R reference
	Maker reference	57557150N3

COUVERCLE FEU AR X9 NOIR METALSID 274

	P2R reference
	Maker reference	57557150R8

COUVERCLE FEU ARRIERE X9 ROUGE 996

	P2R reference	81146
	Maker reference	577249000C

REAR SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 125 X9 EVO -577249000C

	P2R reference
	Maker reference	57557150A7

COUVERCLE FEU AR X9 GRIS PLATINE 686

	P2R reference	80623
	Maker reference	57557150D1

57557150D1 - COUVERCLE FEU ARRIERE X9 BLEU 251

	P2R reference
	Maker reference	57557150G9

CUVERCLE

	P2R reference	66028
	Maker reference	258249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	81054
	Maker reference	577061

577061 - MONOGRAMME LATERALE X9

	P2R reference	66092
	Maker reference	270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

	P2R reference	66035
	Maker reference	259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

	P2R reference
	Maker reference	577065

Monogramme X9 500

	P2R reference	81149
	Maker reference	577257

577257 - MONOGRAMME SL

	P2R reference	67653
	Maker reference	621365

621365 - BOUCHON

	P2R reference	65768
	Maker reference	168077

COPPER GASKET FOR HEAT SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -168077
