Vehicle Exploded View - PIAGGIO X9 500 1998-2005 PIAGGIO

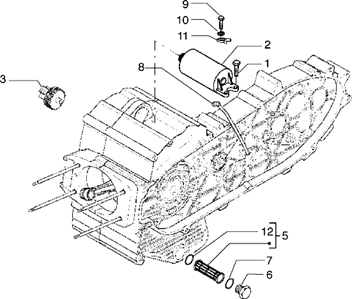

Moteur : T14 DÉMARRAGE ÉLECTRIQUE
Démarrage électrique
Search
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792

1
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792

More information

Quantity required : 2

ELECTRIC STARTER "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X-EVO, 500 X10/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC -82699R

2
P2R reference P2R reference 68634
Maker reference Maker reference 82699R

ELECTRIC STARTER "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X-EVO, 500 X10/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC -82699R

More information

Quantity required : 1

TORQUE LIMITER FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -876835

3
P2R reference P2R reference 70635
Maker reference Maker reference 876835

TORQUE LIMITER FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -876835

More information

Quantity required : 1

OIL FILTER STRAINER "PIAGGIO GENUINE PART" 400-500 MP3 2007>, BEVERLY 2005>, 400 X8 2004>, X-EVO 2007>, 500 X10 2012>, X9 2003>/GILERA 500 FUOCO, NEXUS 2005>/APRILIA 400-500 ATLANTIC 2003> -826033

5
P2R reference P2R reference 68577
Maker reference Maker reference 826033

OIL FILTER STRAINER "PIAGGIO GENUINE PART" 400-500 MP3 2007>, BEVERLY 2005>, 400 X8 2004>, X-EVO 2007>, 500 X10 2012>, X9 2003>/GILERA 500 FUOCO, NEXUS 2005>/APRILIA 400-500 ATLANTIC 2003> -826033

More information

Quantity required : 1

OIL FILTER PLUG "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -826165

6
P2R reference P2R reference 68589
Maker reference Maker reference 826165

OIL FILTER PLUG "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -826165

More information

Quantity required : 1

GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO -285536

7
P2R reference P2R reference 66149
Maker reference Maker reference 285536

GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO -285536

More information

Quantity required : 1

581424 - CABLE

8
P2R reference P2R reference 162963
Maker reference Maker reference 581424

581424 - CABLE

More information

Quantity required : 1

031086 - VIS S03108600

9
P2R reference P2R reference 65637
Maker reference Maker reference 0310865

031086 - VIS S03108600

More information

Quantity required : 1

016406 - RONDELLE S01640600

10
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

016406 - RONDELLE S01640600

More information

Quantity required : 1

584986 - COLLIER

11
P2R reference P2R reference 82143
Maker reference Maker reference 584986

584986 - COLLIER

More information

Quantity required : 1

OIL FILTER GASKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO -288474

12
P2R reference P2R reference 66191
Maker reference Maker reference 288474

OIL FILTER GASKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO -288474

More information

Quantity required : 1
