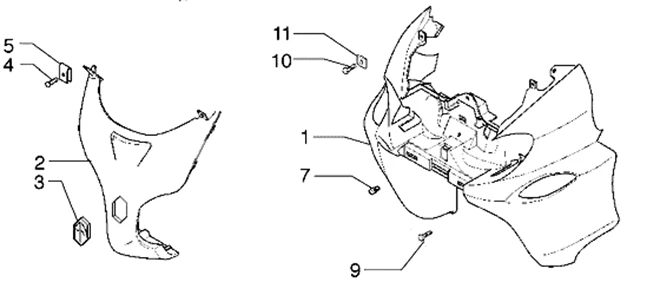

Vehicle Exploded View - PIAGGIO X9 500 1998-2005 PIAGGIO

Châssis : T24 TABLIER
Tablier
Search
FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 BLACK 94 -5755615090-

1
P2R reference P2R reference 80591
Maker reference Maker reference 5755615090

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 BLACK 94 -5755615090-

More information

Quantity required : 1

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 GREY 686 -57556150A7-

1
P2R reference P2R reference 80592
Maker reference Maker reference 57556150A7

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 GREY 686 -57556150A7-

More information

Quantity required : 1

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 BLUE 251 -57556150D1-

1
P2R reference P2R reference 80593
Maker reference Maker reference 57556150D1

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 BLUE 251 -57556150D1-

More information

Quantity required : 1

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 RAW TO BE PAINT -5755615-

1
P2R reference P2R reference 80589
Maker reference Maker reference 5755615

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 RAW TO BE PAINT -5755615

More information

Quantity required : 1

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 BLACK 274 -57556150N3-

1
P2R reference P2R reference 80596
Maker reference Maker reference 57556150N3

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 BLACK 274 -57556150N3-

More information

Quantity required : 1

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 RED 996 -57556150R8-

1
P2R reference P2R reference 80597
Maker reference Maker reference 57556150R8

FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-500 X9 RED 996 -57556150R8-

More information

Quantity required : 1

FRONT CENTRAL RIM "PIAGGIO GENUINE PART" PIAGGIO 125-250-500 X9 BLACK 94 -5755635090-

2
P2R reference P2R reference 80601
Maker reference Maker reference 5755635090

FRONT CENTRAL RIM "PIAGGIO GENUINE PART" PIAGGIO 125-250-500 X9 BLACK 94 -5755635090-

More information

Quantity required : 1

FRONT UPPER RIM "PIAGGIO GENUINE PART" 125-500 X9 PLATINIUM GREY 686 -57556350A7

2
P2R reference P2R reference 80602
Maker reference Maker reference 57556350A7

FRONT UPPER RIM "PIAGGIO GENUINE PART" 125-500 X9 PLATINIUM GREY 686 -57556350A7

More information

Quantity required : 1

FRONT CENTRAL RIM "PIAGGIO GENUINE PART" PIAGGIO 125-250-500 X9 BLUE 251 -57556350D1-

2
P2R reference P2R reference 80603
Maker reference Maker reference 57556350D1

FRONT CENTRAL RIM "PIAGGIO GENUINE PART" PIAGGIO 125-250-500 X9 BLUE 251 -57556350D1-

More information

Quantity required : 1

57556350G9 - FACE AV

2
P2R reference P2R reference 80606
Maker reference Maker reference 57556350G9

57556350G9 - FACE AV

More information

Quantity required : 1

FRONT CENTRAL RIM "PIAGGIO GENUINE PART" PIAGGIO 125-250-500 X9 BLACK 274 -57556350N3-

2
P2R reference P2R reference 80607
Maker reference Maker reference 57556350N3

FRONT CENTRAL RIM "PIAGGIO GENUINE PART" PIAGGIO 125-250-500 X9 BLACK 274 -57556350N3-

More information

Quantity required : 1

57556350R8 - PARTIE CENTRALE AV X9 ROUGE 996

2
P2R reference P2R reference 80608
Maker reference Maker reference 57556350R8

57556350R8 - PARTIE CENTRALE AV X9 ROUGE 996

More information

Quantity required : 1

DECAL - to clip "PIAGGIO GENUINE PART" 50-125 ZIP, FLY, LIBERTY, 125-250 X8 -574771

3
P2R reference P2R reference 80428
Maker reference Maker reference 574771

DECAL - TO CLIP "PIAGGIO GENUINE PART" 50-125 ZIP, FLY, LIBERTY, 125-250 X8 -574771

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

4
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

More information

Quantity required : 6

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

5
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 7

581415 - BOUTON DE REMISE A ZERO

7
P2R reference P2R reference 81564
Maker reference Maker reference 581415

581415 - BOUTON DE REMISE A ZERO

More information

Quantity required : 1
