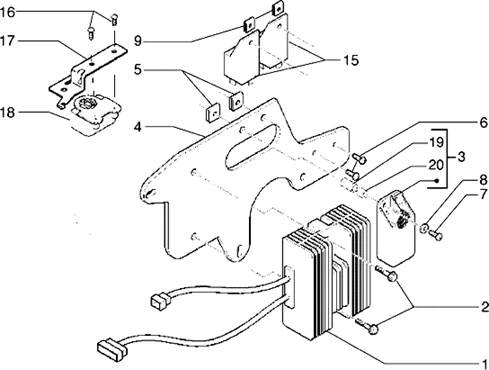

Vehicle Exploded View - PIAGGIO X9 500 1998-2005 PIAGGIO

Connexions électriques : T47 DISPOSITIFS ELECTRIQUES-RÉGULATEUR
Dispositifs electriques-Régulateur
Search
VOLTAGE REGULATOR-"PIAGGIO GENUINE PART" 250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, 250-400 X-EVO, X8/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 ATLANTIC, SCARABEO -639110

1
P2R reference P2R reference 67823
Maker reference Maker reference 639110

VOLTAGE REGULATOR-"PIAGGIO GENUINE PART" 250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, 250-400 X-EVO, X8/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 ATLANTIC, SCARABEO -639110

More information

Quantity required : 1

B011784 - VIS

2
P2R reference P2R reference 110768
Maker reference Maker reference B011784

B011784 - VIS

More information

Quantity required : 2

582098 - DISPOSITIF BEQUILLE CENTRALE

3
P2R reference P2R reference 81699
Maker reference Maker reference 582098

582098 - DISPOSITIF BEQUILLE CENTRALE

More information

Quantity required : 1

582141 - ETRIER

4
P2R reference P2R reference 81710
Maker reference Maker reference 582141

582141 - ETRIER

More information

Quantity required : 1

826275 - PLAQUETTE

5
P2R reference P2R reference 158681
Maker reference Maker reference 826275

826275 - PLAQUETTE

More information

Quantity required : 2

SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

6
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

More information

Quantity required : 2

015597 - VIS S01559700

7
P2R reference P2R reference 65385
Maker reference Maker reference 0155975

015597 - VIS S01559700

More information

Quantity required : 2

WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686

8
P2R reference P2R reference 65428
Maker reference Maker reference 0166865

WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686

More information

Quantity required : 4

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409

9
P2R reference P2R reference 72925
Maker reference Maker reference CM017409

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409

More information

Quantity required : 2

RELAY for ELECTRIC STARTER 12V 30A "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -58246R

15
P2R reference P2R reference 67258
Maker reference Maker reference 58246R

RELAY FOR ELECTRIC STARTER 12V 30A "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -58246R

More information

Quantity required : 2

SCREW - -008432

16
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW - -008432

More information

Quantity required : 2

583385 - PLAQUETTE

17
P2R reference P2R reference 81920
Maker reference Maker reference 583385

583385 - PLAQUETTE

More information

Quantity required : 1

583363 - SEGNALATEUR

18
P2R reference P2R reference 81906
Maker reference Maker reference 583363

583363 - SEGNALATEUR

More information

Quantity required : 1
