Vehicle Exploded View - PIAGGIO X9 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

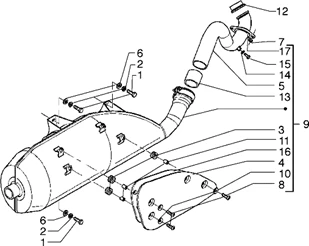

Moteur : T18 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T18.PNG)
1 |
826348 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
2 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
2 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/9/6/3/img/78963.jpg)
3 |
SILENTBLOC FOR EXHAUST "PIAGGIO GENUINE PART" 125 BEVERLY, 500 X9/GILERA 125 RUNNER 2 STROKE -482281- More informationQuantity required : 4 |
||||||
|
4 |
828190 - PROTECTION More informationQuantity required : 1 |
||||||
|
5 |
RACCORD |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
6 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/9/img/65379.jpg)
7 |
NUT - FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/8/img/68948.jpg)
8 |
831153 - VIS M5X12 More informationQuantity required : 4 |
||||||
|
9 |
|
||||||
|
9 |
8324195 - SILENCIEUX SANS PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/7/img/92917.jpg)
10 |
EXHAUST BUSHING/WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -834643 More informationQuantity required : 4 |
||||||
|
11 |
829309 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/2/img/68732.jpg)
12 |
EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -828194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/8/img/70558.jpg)
13 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" 350 BEVERLY, X10, 400-500 MP3, BEVERLY, X-EVO/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV, MANA/GILERA 500 NEXUS, FUOCO, 850 GP -8749465 More informationQuantity required : 1 |
||||||
|
14 |
830298 - GARNITURE More informationQuantity required : 1 |
||||||
|
15 |
830297 - VIS More informationQuantity required : 1 |
||||||
|
16 |
830299 - PANN.TERMOISOLANTE More informationQuantity required : 1 |
||||||
|
17 |
|
