Vehicle Exploded View - PIAGGIO X9 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

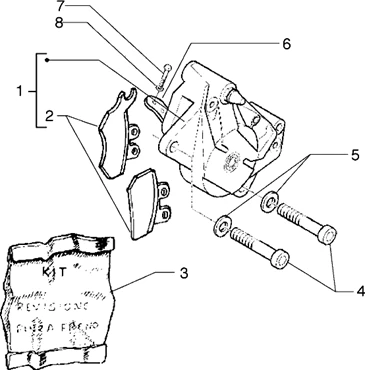

Suspensions-roues : T40 ETRIES DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T40.PNG)
1 |
56473R - PINCES FRAIN More informationQuantity required : 1 |
||||||
|
1 |
FRONT BRAKE CALIPER -RIGHT - "PIAGGIO GENUINE PART" 400-500 BEVERLY -56472R More informationQuantity required : 1 |
||||||
|
1 |
CM067903 - PINCES FRAIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/2/img/68002_20251023155917.jpg)
2 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-500 X9 FRONT+REAR, 400-500 BEVERLY FRONT/APRILIA 1000 RSV REAR, 1000 TUONO REAR (BREMBO) -647076 More informationQuantity required : 3 |
||||||
|
3 |
BRAKE PADS PIN "PIAGGIO GENUINE PART" BEVERLY 400-500 2008>2012, X9 125-250-500 2005>2007 -494967 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/9/img/67369.jpg)
4 |
598919 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
5 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 6 |
||||||
|
6 |
649418 - FLASQUE ROUE AVT More informationQuantity required : 1 |
