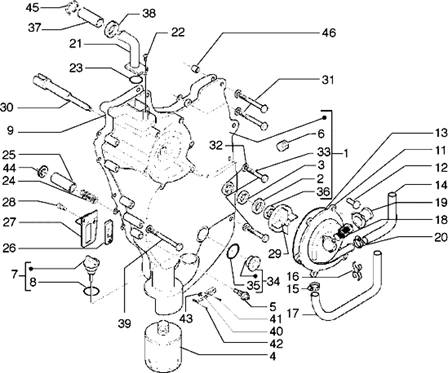

Vehicle Exploded View - PIAGGIO X9 500 1998-2005

	P2R reference	125593
	Maker reference	8725685

COMPLETE WATER PUMP "PIAGGIO GENUINE PART" 500 BEVERLY, X9, 400 X8/GILERA 500 NEXUS/APRILIA 400, 500 SCARABEO, ATLANTIC -8725685

	P2R reference	66925
	Maker reference	497486

SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -497486

	P2R reference	68550
	Maker reference	825577

CLUTCH COMMAND GASKET "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO, SHIVER -825577

	P2R reference	68859
	Maker reference	82960R

OIL FILTER "PIAGGIO GENUINE PART" 400-500 MP3, X8, X9, X10, BEVERLY/GILERA 500 NEXUS, FUOCO, GP800/APRILIA SCARABEO, ATLANTIC, 1200 CAPONORD, DORSODURO, SHIVER, SRV 850 -82960R

	P2R reference	67933
	Maker reference	1D001138

SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138

	P2R reference	72673
	Maker reference	B015433

B015433 - PLUG VISSES

	P2R reference	70548
	Maker reference	874707

OIL TANK CAP/OIL GAUGE "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE 400-500 CC -874707

	P2R reference	158280
	Maker reference	479986

1A009397 - JOINT "OR"

	P2R reference	158280
	Maker reference	1A009397

1A009397 - JOINT "OR"

	P2R reference	69538
	Maker reference	847649

GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" 400 X8, X-EVO, BEVERLY, 500 X9/GILERA 500 NEXUS/APRILIA 400-500 SCARABEO -847649

	P2R reference	68710
	Maker reference	827883

WATER PUMP COVER "PIAGGIO GENUINE PART" 500 X9 1998>2002/APRILIA 500 ATLANTIC 2001>2004 -827883

	P2R reference	66032
	Maker reference	259151

SCREW - (M5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER +SCOOTER -259151

	P2R reference	69210
	Maker reference	842041

842041 - VIS

	P2R reference	68711
	Maker reference	827884

O'RING GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -827884

	P2R reference	68735
	Maker reference	828212

828212 - TUBE

	P2R reference
	Maker reference	829210

PLAQUETTE

	P2R reference	92780
	Maker reference	828218

828218 - TUBE

	P2R reference	69120
	Maker reference	834484

834484 - THERMOSTA

	P2R reference	69563
	Maker reference	848140

THERMOSTAT "PIAGGIO GENUINE PART" 400-500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, NEXUS -848140

	P2R reference	68793
	Maker reference	828894

828894 - COUVERCLE

	P2R reference	72869
	Maker reference	CM001908

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001908

	P2R reference	68811
	Maker reference	829047

829047 - TUYAU HUILE

	P2R reference	127167
	Maker reference	1A003109

1A003109 - VIS M5X16

	P2R reference	65977
	Maker reference	237553

237553 - JOINT O RING

	P2R reference	68848
	Maker reference	829486

829486 - RESSORT

	P2R reference	68864
	Maker reference	829661

829661 - VOLET HUILE

	P2R reference	68695
	Maker reference	82778R

82778R - SUPPORT

	P2R reference	68796
	Maker reference	828930

828930 - TOLE

	P2R reference	66376
	Maker reference	430264

430264 - VIS

	P2R reference	151528
	Maker reference	827929

WATER PUMP IMPELLER "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 400-500 CC -1A002345

	P2R reference	151528
	Maker reference	1A002345

WATER PUMP IMPELLER "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 400-500 CC -1A002345

	P2R reference	68751
	Maker reference	828394

WATER PUMP SHAFT "PIAGGIO GENUINE PART" 400 X8, BEVERLY, 500 X9, BEVERLY/GILERA 500 NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO -828394

	P2R reference	72725
	Maker reference	B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792

	P2R reference	72720
	Maker reference	414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	68876
	Maker reference	82991R

WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R

	P2R reference	66925
	Maker reference	497486

SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -497486

	P2R reference	68810
	Maker reference	8290405

TIMING CONTROL CAP - ON WATER PUMP HOUSING "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -8290405

	P2R reference	158280
	Maker reference	479986

1A009397 - JOINT "OR"

	P2R reference	158280
	Maker reference	1A009397

1A009397 - JOINT "OR"

	P2R reference	68857
	Maker reference	829557

WATER PUMP AXLE WASHER "PIAGGIO GENUINE PART" APRILIA ATLANTIC 500 2001>2008/ GILERA NEXUS 500 2006>2008/ PIAGGIO X9 500 1998>2007 -829557

	P2R reference	92818
	Maker reference	829254

829254 - TUYAU HUILE

	P2R reference	72866
	Maker reference	CM001904

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904

	P2R reference	66452
	Maker reference	434429

434429 - VIS

	P2R reference	81943
	Maker reference	583584

583584 - PLAQUETTE

	P2R reference	72725
	Maker reference	B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792

	P2R reference	66569
	Maker reference	478895

478895 - VIS

	P2R reference	81989
	Maker reference	583973

583973 - TAMPON

	P2R reference	66703
	Maker reference	486075

GASKET FOR DRAIN CAP OR MANOMETER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -486075

	P2R reference	72868
	Maker reference	CM001907

COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907

	P2R reference	72696
	Maker reference	B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956

	P2R reference	69133
	Maker reference	840062

840062 - CUPPORT
