Vehicle Exploded View - PIAGGIO X9 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

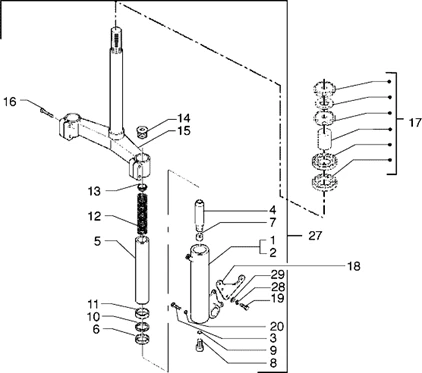

Suspensions-roues : T34 FOURCHE-GR.BUTEES DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T34.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/0/5/img/66905.jpg)
1 |
497005 - FOURREAUE DE FOURCHE GAU M23 More informationQuantity required : 1 |
||||||
2 |
FORK LEG - RIGHT "PIAGGIO GENUINE PART" PIAGGIO X8 125 2005>2007, X9 125 2005>2007, X-EVO 125 2007>2016/ APRILIA SR MAX 125-300 2011>2014 -497006- More informationQuantity required : 1 |
||||||
|
3 |
649619 - BOULON More informationQuantity required : 2 |
||||||
|
4 |
497008 - CYLINDRE FOURCHE M23 More informationQuantity required : 2 |
||||||
|
5 |
497009 - CANON DE FOURCHE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/7/9/img/67479.jpg)
6 |
FORK OIL SEAL GASKET- WITH ABS "PIAGGIO GENUINE PART" 125-250-300 X 7, BEVERLY, CARNABY, 125-250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS (48X35X8) -601310 More informationQuantity required : 2 |
||||||
|
7 |
497011 - BOUCHON More informationQuantity required : 2 |
||||||
|
8 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/8/img/67378.jpg)
9 |
599270 - JOINT DE FOURCHE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/5/img/66915.jpg)
10 |
STOP RING FOR FORK SEAL "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER -497132 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/8/img/67418.jpg)
11 |
FORK DUST COVER - KAYABA "PIAGGIO GENUINE PART" 125-250 X-EVO, X8, X7, X9, BEVERLY/GILERA 125-250 NEXUS -600269 More informationQuantity required : 2 |
||||||
|
12 |
497016 - RESSORT FOURCHE M23-M27 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/0/8/img/66908.jpg)
13 |
497017 - JOINT FOURCHE More informationQuantity required : 2 |
||||||
|
14 |
497018 - BOULON FOURCHE More informationQuantity required : 2 |
||||||
|
15 |
FORK YOKE - KAIABA "PIAGGIO GENUINE PARTS" 125-250 X8, 125 X9 -601313 More informationQuantity required : 1 |
||||||
|
16 |
649019 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/5/7/img/82357.jpg)
17 |
HEADSET (CONICAL BEARINGS) "PIAGGIO GENUINE PART" 125 X8, X9/GILERA 500 NEXUS -5982615 More informationQuantity required : 1 |
||||||
|
18 |
597579 - PLAQUE More informationQuantity required : 2 |
||||||
|
19 |
497023 - VIS More informationQuantity required : 4 |
||||||
|
20 |
Rondelle de fixation plaque |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/0/0/img/79800.jpg)
27 |
FRONT FORK "PIAGGIO GENUINE PART" 125 X9, X8 -56172R More informationQuantity required : 1 |
||||||
|
28 |
|
