Vehicle Exploded View - PIAGGIO X9 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

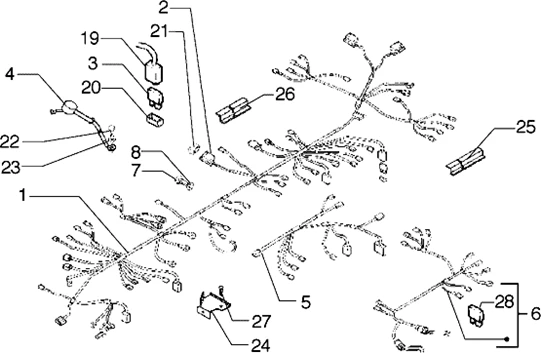

Connexions électriques : T49 FAISCEAU DE CABLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/432/X9_500_1998-2005_T49.PNG)
1 |
FAISCEAU CABLE |
||||||
|
2 |
583070 - DIODE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
3 |
252945 - FUSIBLE 7,5A More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
3 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/4/1/img/77641.jpg)
3 |
FUSE 70 AMP "PIAGGIO GENUINE PART" PIAGGIO 500 X9 -291807 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
3 |
292507 - FUSIBLE 10A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.jpg)
3 |
293256 - FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/4/6/img/81846.jpg)
3 |
582930 - FUSIBLE More informationQuantity required : 1 |
||||||
|
4 |
582650 - CABLE More informationQuantity required : 1 |
||||||
|
5 |
582784 - CABLE More informationQuantity required : 1 |
||||||
|
6 |
583586 - FAISC. CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
7 |
018644 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
8 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/1/img/67181.jpg)
19 |
580653 - PORTE-FUSIBLES More informationQuantity required : 2 |
||||||
|
19 |
581190 - PORTE-FUSIBLES More informationQuantity required : 2 |
||||||
|
20 |
581191 - COUVERCLE More informationQuantity required : 2 |
||||||
|
21 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/6/img/67226.jpg)
22 |
581596 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
23 |
016405 - RONDELLE S01640500 More informationQuantity required : 1 |
||||||
|
24 |
583261 - SUPPORT More informationQuantity required : 1 |
||||||
|
25 |
583282 - JOINT PROTECT ARR FX More informationQuantity required : 2 |
||||||
|
26 |
580160 - DISPOSITIF More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
27 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
27 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
28 |
FUSE 70 AMP "PIAGGIO GENUINE PART" PIAGGIO 500 X9 -291807 More informationQuantity required : 1 |
