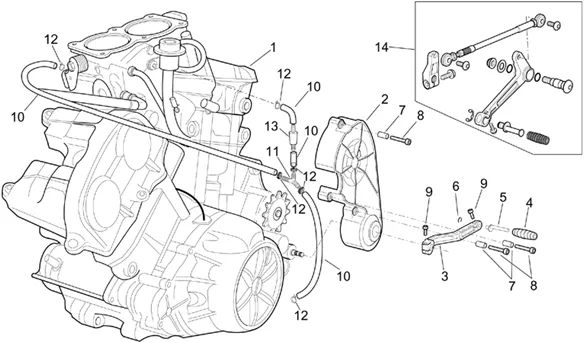

Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Moteur : 29.33 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_29.33.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
AP8106968-CASING SPROCKET, GREY More informationQuantity required : 1 |
||||||
|
3 |
GEAR LEVER OEM APRILIA 1000 RSV 1998 > 2008-AP8106874 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
4 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
5 |
ROD BRAKE LEVER REAR OEM PIAGGIO FOR MOTORCYCLE-GUZZI STELVIO 2024, 850-1200 NORGE, BREVA, 1200 SPORT/ROD SELECTEUR DE VITESSES RANGE MOTO APRILIA-AP8121221 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
6 |
CLIPS/CIRCLIPS DIAMETRE 9MM OEM PIAGGIO COMMON A LA RANGE-AP8150462 More informationQuantity required : 1 |
||||||
|
7 |
AP8221046 - ENTRETOISE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
8 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8150220 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
9 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 2 |
||||||
|
9 |
AP8152426 - VIS TCC More informationQuantity required : 2 |
||||||
|
10 |
AP8144015-HOSE OIL More informationQuantity required : 1 |
||||||
|
11 |
AP8120116-" FITTING EN " " Y " " " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.jpg)
12 |
CLAMP CLIC VERT (6. 6X11X1) OEM PIAGGIO COMMON A LA RANGE-AP8120446 More informationQuantity required : 6 |
||||||
|
13 |
AP8104251-VALVE DE RETENUE More informationQuantity required : 1 |
||||||
|
14 |
AP8791264 - KIT CAMBIO ROVESCIO More informationQuantity required : 1 |
