Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

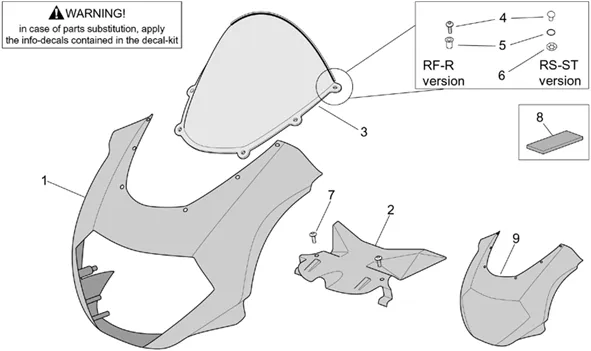

Chassis : 28.11 CARROSSERIE AV. - COUPOLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.11.PNG)
1 |
Avant carène, carb.; |
||||||
|
1 |
AP8168226 - AVANT CARENE; More informationQuantity required : 1 |
||||||
|
1 |
AP8168513 - AVANT CARENE; More informationQuantity required : 1 |
||||||
|
1 |
Avant carène |
||||||
|
1 |
AP8178243 - FRONTALE CARENA V.NERO DARK. More informationQuantity required : 1 |
||||||
|
1 |
FRONTALE CAR.CARB.V.TRASP.N/DE |
||||||
|
1 |
AP8178254 - FRONTALE CARENA V.SILVER M. More informationQuantity required : 1 |
||||||
|
1 |
AP8178258 - FRONTALE CARENA V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
2 |
AP8168455-LATCH BULLE-TABL. EDGE More informationQuantity required : 1 |
||||||
|
2 |
Fermeture bulle-tabl. bord; |
||||||
|
2 |
AP8168907 - CHIUSURA CUPOLINO CRUSCOTTO More informationQuantity required : 1 |
||||||
|
2 |
AP8179038 - CHIUSURA CUPOLINO CRUSC.CARBON More informationQuantity required : 1 |
||||||
|
3 |
AP8168380 - VITRE COUPOLE; More informationQuantity required : 1 |
||||||
|
3 |
AP8168485 - VITRE COUPOLE; More informationQuantity required : 1 |
||||||
|
3 |
AP8168601 - VITRE COUPOLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/0/img/71750.jpg)
4 |
RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109 More informationQuantity required : 6 |
||||||
|
4 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
5 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
5 |
RUBBER WITH INSERT (M4) OEM PIAGGIO COMMON A LA RANGE-AP8144564 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
6 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 6 |
||||||
|
7 |
AP8152421-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
7 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.jpg)
8 |
GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512 More informationQuantity required : 2 |
||||||
|
9 |
Avant carène, carb. |
