Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

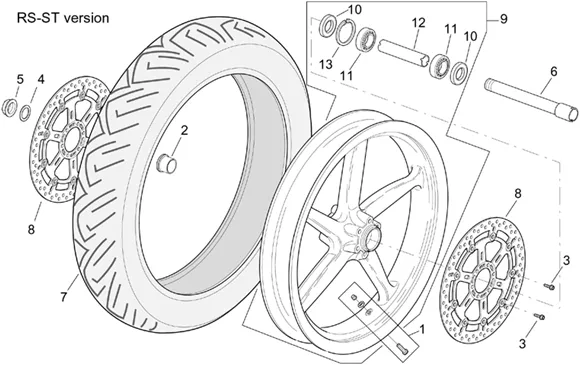

Chassis : 28.35 ROUE AV.V ST-RS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
1 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8101744 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/5/img/71575.jpg)
2 |
SPACER EXTERIEURE RIGHT FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8125728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
3 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
4 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
5 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/4/img/69644.jpg)
6 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV, TUONO, 1200 DORSODURO, CAPONORD -85263R More informationQuantity required : 1 |
||||||
8 |
AP8113926 - DISQUE FREIN AVANT; More informationQuantity required : 2 |
||||||
|
8 |
AP8133781 - DISCO FRENO ANT.D.320 More informationQuantity required : 2 |
||||||
|
9 |
AP8108675 - ROUE AV NUE More informationQuantity required : 1 |
||||||
|
9 |
AP8128086 - RUOTA ANTERIORE More informationQuantity required : 1 |
||||||
|
10 |
OIL SEAL (30X47X7) OEM PIAGGIO COMMON A LA RANGE-AP8125773 More informationQuantity required : 2 |
||||||
|
11 |
AP8125777-BEARING More informationQuantity required : 2 |
||||||
|
12 |
AP8125778 - ENTRETOISE INTERNE More informationQuantity required : 1 |
||||||
|
13 |
AP8125779-BUSH SEEGER More informationQuantity required : 1 |
