Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

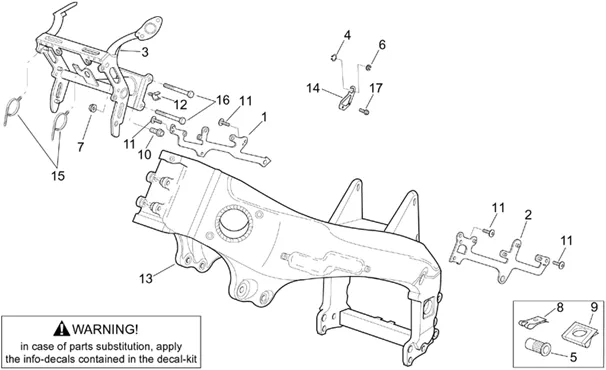

Chassis : 28.02 CHASSIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.02.PNG)
1 |
AP8134389-BRACKET DR BOBINES More informationQuantity required : 1 |
||||||
|
2 |
AP8134390 - SUPPORT G. BOBINES; More informationQuantity required : 1 |
||||||
|
2 |
AP8134635 - SUPPORT G. BOBINES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/8/2/img/50082.jpg)
3 |
INSTRUMENTS HOLDER FRAME "PIAGGIO GENUINE PART" APRILIA 1000 TUONO 2002>2005 -AP8146700 More informationQuantity required : 1 |
||||||
|
3 |
Châssis porte-instr.; |
||||||
|
4 |
AP8121428-BUSH SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.jpg)
5 |
RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544 More informationQuantity required : 12 |
||||||
|
6 |
Anneau élastique; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
10 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 1 |
||||||
|
11 |
AP8152418-SCREW More informationQuantity required : 4 |
||||||
|
11 |
AP8152424-SCREW More informationQuantity required : 4 |
||||||
|
12 |
AP8220269-GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
13 |
AP8146631 - CHASSIS FINI; More informationQuantity required : 1 |
||||||
|
13 |
AP8146699 - CHASSIS FINI; More informationQuantity required : 1 |
||||||
|
13 |
AP8146763 - TELAIO V. More informationQuantity required : 1 |
||||||
|
13 |
AP8146711 - CHASSIS FINI; More informationQuantity required : 1 |
||||||
|
13 |
AP8146773 - TELAIO V. More informationQuantity required : 1 |
||||||
|
14 |
AP8134674 - PLAQ.SUPP.CABLE MIN.; More informationQuantity required : 1 |
||||||
|
15 |
AP8201539 - COLLIER; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/6/img/50856.jpg)
16 |
SCREW - FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA RS 50-125 1999>2010/SCREW FOR SPIDER PLATE- APRILIA SL 1000 FALCO 2000>2003, TUONO 1000 2002>2005 -AP8150314 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
17 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
